Figuring out garage door sizes can feel a little overwhelming, but the good news is that most homes stick to a handful of standard dimensions. If you have a single-car garage, you're almost certainly looking at a door that's 8 or 9 feet wide by 7 feet tall. For a two-car garage, the go-to size is 16 feet wide by 7 feet tall.
Understanding Standard Garage Door Dimensions
When you start shopping for a new garage door, you'll see these same sizes pop up again and again. These "standard" sizes aren't just random numbers; they evolved over decades to match how we build homes and, just as importantly, the size of the vehicles we park in them.
Think about how much cars have changed. The average sedan from the '90s is quite a bit smaller than the big SUVs and trucks common in driveways today. That evolution directly influenced the typical garage door sizes you see on the market. An older home might have a classic 8-foot-wide door, but newer construction almost always defaults to a 9-foot width to give drivers a little more breathing room.
The Go-To Sizes for Most Homes
These standard dimensions became the industry norm because they simply work for the vast majority of homeowners. They hit that sweet spot between function, cost, and availability. Since manufacturers produce these sizes in huge volumes, the prices stay competitive.
- Single-Car Garages: The standard width is 8 or 9 feet. The 7-foot height is plenty for most cars, SUVs, and standard-sized pickup trucks.
- Two-Car Garages: A single 16-foot wide door is by far the most popular choice, giving you enough room to park two vehicles side-by-side without a squeeze.
Knowing these common measurements gives you a fantastic starting point. It helps you quickly figure out if your garage opening is standard or if you’ll need to look at custom options. If you're curious about how different types of garage structures are designed beyond the door itself, you can explore various specifications for external garage units.
To make it even easier, here's a quick reference table with the most common sizes you'll come across.
Quick Guide to Standard Residential Garage Door Sizes
This table provides a quick overview of the most common standard dimensions for single, double, and specialty residential garage doors.
| Garage Type | Standard Widths | Standard Heights |
|---|---|---|
| Single-Car | 8 ft, 9 ft, 10 ft | 7 ft, 8 ft |
| Double-Car | 12 ft, 14 ft, 16 ft, 18 ft | 7 ft, 8 ft |
| RV/Specialty | 10 ft, 12 ft | 10 ft, 12 ft, 14 ft |
This guide should give you a solid foundation for what to expect when you start measuring and shopping. Most homes will fall neatly into one of these categories.
How to Measure Your Garage for a New Door
Getting the right measurements is probably the most important part of the whole process. Don't let that intimidate you, though. A tape measure and a few minutes are all you need to get it right, ensuring your new door fits like a glove and works smoothly from day one.
Let’s walk through exactly what you need to measure.
First things first, let's get the size of the actual opening where the door will sit.
- Width: Stretch your tape measure across the finished garage door opening, from the left jamb to the right jamb. I always recommend measuring in three spots—top, middle, and bottom—and using the widest number you get. This little trick accounts for any subtle imperfections in the framing.
- Height: Now, do the same for the height. Measure from the garage floor up to the very top of the finished opening. Just like with the width, take measurements on the left, in the middle, and on the right, and use the tallest figure. This makes sure the door will seal perfectly at the bottom.
These two numbers give you the basic size, like a "16-foot by 7-foot" door. But that's only half the story. The entire garage door system—the tracks, the springs, the opener—needs a bit of elbow room to work properly.
Checking Your Side Room and Headroom
Now, let's look at the space around the opening. This is a step people often forget, but it’s absolutely crucial for a safe and functional installation.
-
Side room: This is the wall space on either side of the door opening. You'll want to measure from the edge of the opening to the nearest obstruction, which is usually the wall itself. For a standard setup with torsion springs, you typically need at least 3.75 inches of clear space on each side.
-
Headroom: This is the critical space above the door. Measure from the top of the opening straight up to the ceiling (or the lowest thing in the way, like a support beam or a light). Most standard installations need about 12 to 15 inches of headroom to fit the springs and track.
Pro Tip: Don't forget about the backroom! You need to make sure there's enough runway for the door to open all the way. Measure from the garage door opening straight back into the garage. You'll typically need the height of the door plus another 18 inches or so to make room for the opener.
Those four magic numbers—width, height, side room, and headroom—are exactly what a professional installer needs to know. Having them ready makes the whole process faster, prevents any costly surprises, and guarantees a flawless installation that will last for years.

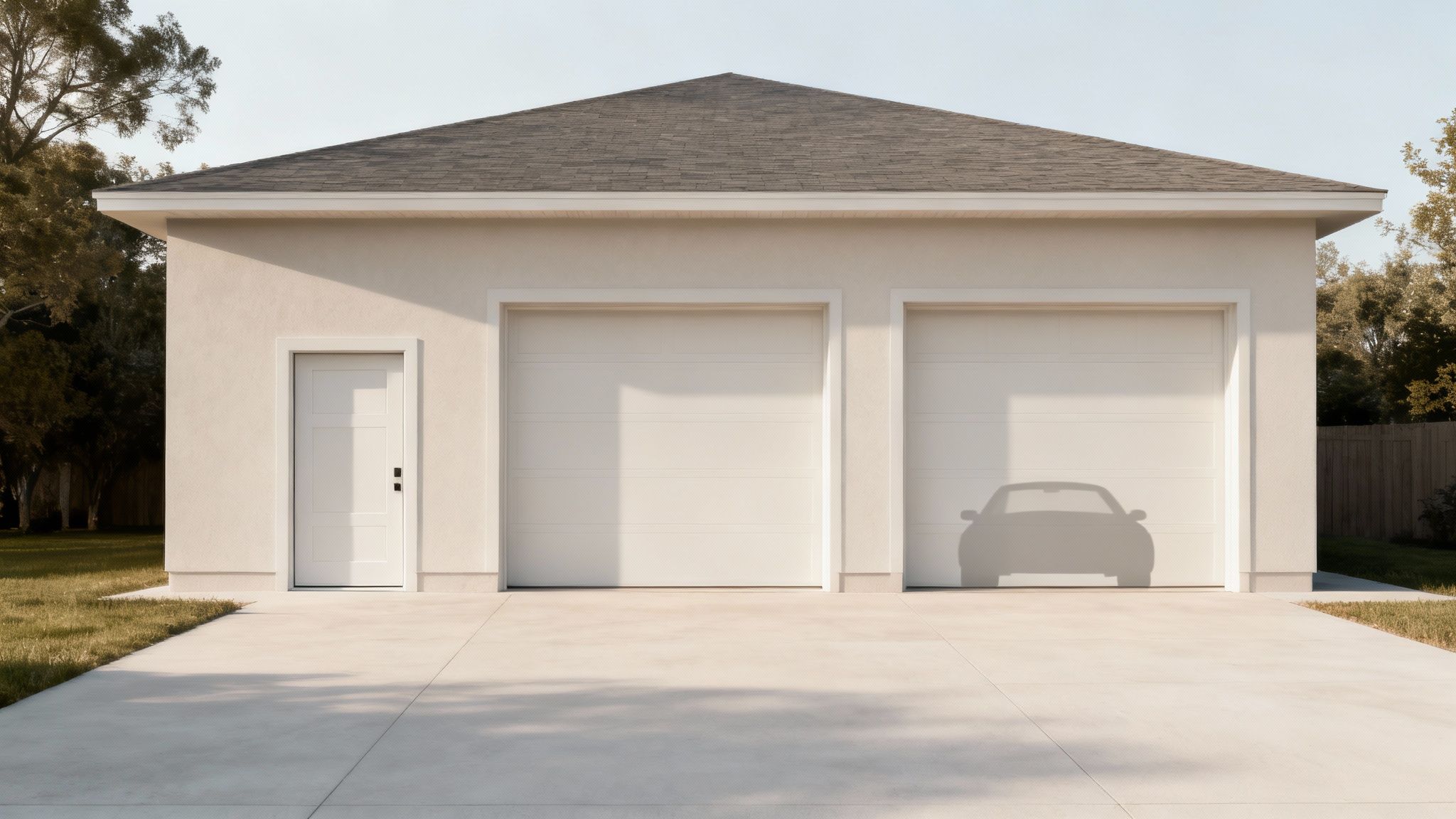

Choosing Between One Double or Two Single Doors
It’s one of the biggest forks in the road when planning a new garage: do you go with one big double door or two individual single doors? This is a classic dilemma, and the right answer really depends on your daily routine, what you drive, and the look you're going for.
A double door, which is almost always 16 feet wide, gives you an enormous, unobstructed opening. If you navigate a large SUV, a work van, or a pickup truck, that extra wiggle room is a lifesaver. You won't have to worry about dinging your mirrors on a center post. Aesthetically, it creates a clean, sweeping look that can really complement certain home styles. The big "what if," though? If your opener dies or a spring snaps, both cars are stuck.
The Case for Two Single Doors
Putting in two single doors—usually 8 or 9 feet wide apiece—is like having a built-in backup plan. If one door's opener decides to quit, you can still get the other car out and get on with your day. From a design perspective, two doors can add more architectural character, breaking up what would otherwise be a large, flat surface on the front of your home.
Another point for the two-door setup is a slight edge in energy efficiency. When you open just one door, you're exposing a smaller opening to the elements. That means less of your heated or cooled air escapes, which is a nice little bonus during our frigid Northeast Ohio winters.

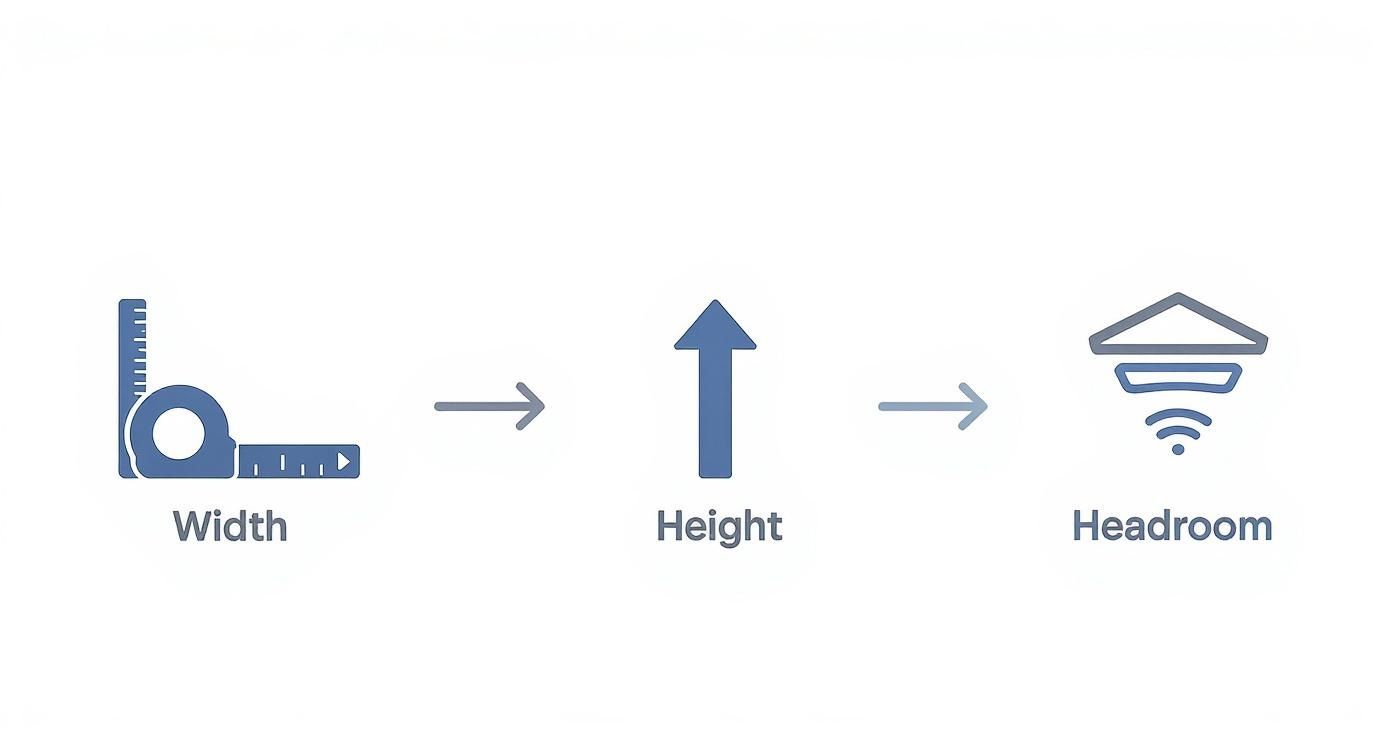

Deciding which way to go is really about balancing convenience against redundancy. The diagram below shows the key measurements you’ll need to take, and these apply no matter which configuration you end up choosing.
As you can see, getting the width, height, and headroom right is the critical first step for any new door installation.
Comparing Costs and Maintenance
Money is always part of the conversation. Upfront, installing a single double door is typically a bit friendlier on the wallet than putting in two separate doors. You're only buying one door and one opener, after all.
But you have to think long-term about maintenance. The math isn't always so simple.
- One Double Door: You have one opener and one set of heavy-duty springs. When a major part breaks, the repair bill can be higher because the components are larger and under more tension.
- Two Single Doors: Here, you've got two openers and two sets of springs. While that technically doubles the number of parts that could fail over time, the cost to repair or replace any single component is usually less.
In the end, it’s a personal call. Think about your vehicles, your budget, and the style of your home. If you want to dive deeper into all the variables, our guide on how to choose a garage door is a great resource.
The Hidden Space Your Garage Door Needs
When you're picking out a new garage door, it's easy to get caught up in the fun stuff—the style, the color, maybe some cool windows. But the door itself is only part of the puzzle. For that door to open and close smoothly day after day, it needs a surprising amount of clear space around the opening.
Think of it like buying a new couch. You don't just measure the couch; you have to measure the doorways and hallways to make sure you can get it into the room. A garage door is no different. This "clearance" space is an absolute must-have for a proper, safe installation.
Headroom Is King
The most important measurement you’ll take is for headroom. This is simply the space between the top of your garage door opening and the ceiling (or the lowest-hanging obstruction, like a rafter or some plumbing). This is where the real work happens—it’s where the springs and the top curve of the track system live.
- A standard torsion spring system, the most common type, needs about 12 inches of headroom to work properly.
- Older extension spring systems can sometimes get by with a little less, around 10 inches.
- If you're in a real pinch, special "low headroom" track kits can be installed in spaces with as little as 4.5 inches, but that’s a custom job for a tricky situation.
I like to think of headroom as the engine room for your garage door. If there isn't enough space for the mechanical parts to move, the whole system will be strained, unreliable, and potentially unsafe.
Don't Forget Side Room and Backroom
While headroom gets all the glory, two other dimensions are just as crucial. First is side room, which is the wall space you have on the left and right sides of the door opening. You need a minimum of 3.75 inches on each side to mount the vertical tracks that the door rollers glide up and down in.
Finally, there's backroom. This is the clear, unobstructed distance from the garage door opening all the way to the back wall of your garage. As your door opens, it travels along horizontal tracks and ends up lying flat, parallel to your ceiling. You'll need a clear path equal to the height of the door plus an extra 18 inches so it doesn't bump into anything.
To make the most of the vertical space left over once your door is installed, you might find some inspiration from these clever garage ceiling storage ideas.
The garage door opener also needs its own space for the motor and rail, and its requirements are tied directly to your door's size. If you want to dive deeper, our guide explains how to choose a garage door opener that will be a perfect fit for your setup. This careful attention to residential spaces is a big reason why North America accounts for over 36% of the global market for residential garage doors.
Exploring Custom and Specialty Door Sizes
Standard garage door sizes handle the job for most houses, but what if your situation is anything but standard? Maybe you restore classic cars and need a serious workshop space. Or perhaps you've got a towering RV ready for your next big road trip. You might even live in a beautiful historic home with some architectural oddities.
When you're in one of those boats, an off-the-shelf door from a big box store just isn't going to work.
This is exactly where custom and specialty garage doors shine. You aren’t limited to the typical residential garage door sizes you see on every other house on the block. A custom door can be built to nearly any dimension your home requires.
When a Custom Door Is the Answer
Most homeowners who go the custom route find themselves in one of a few common situations. Seeing if your project fits one of these categories can help you figure out if it's the right move.

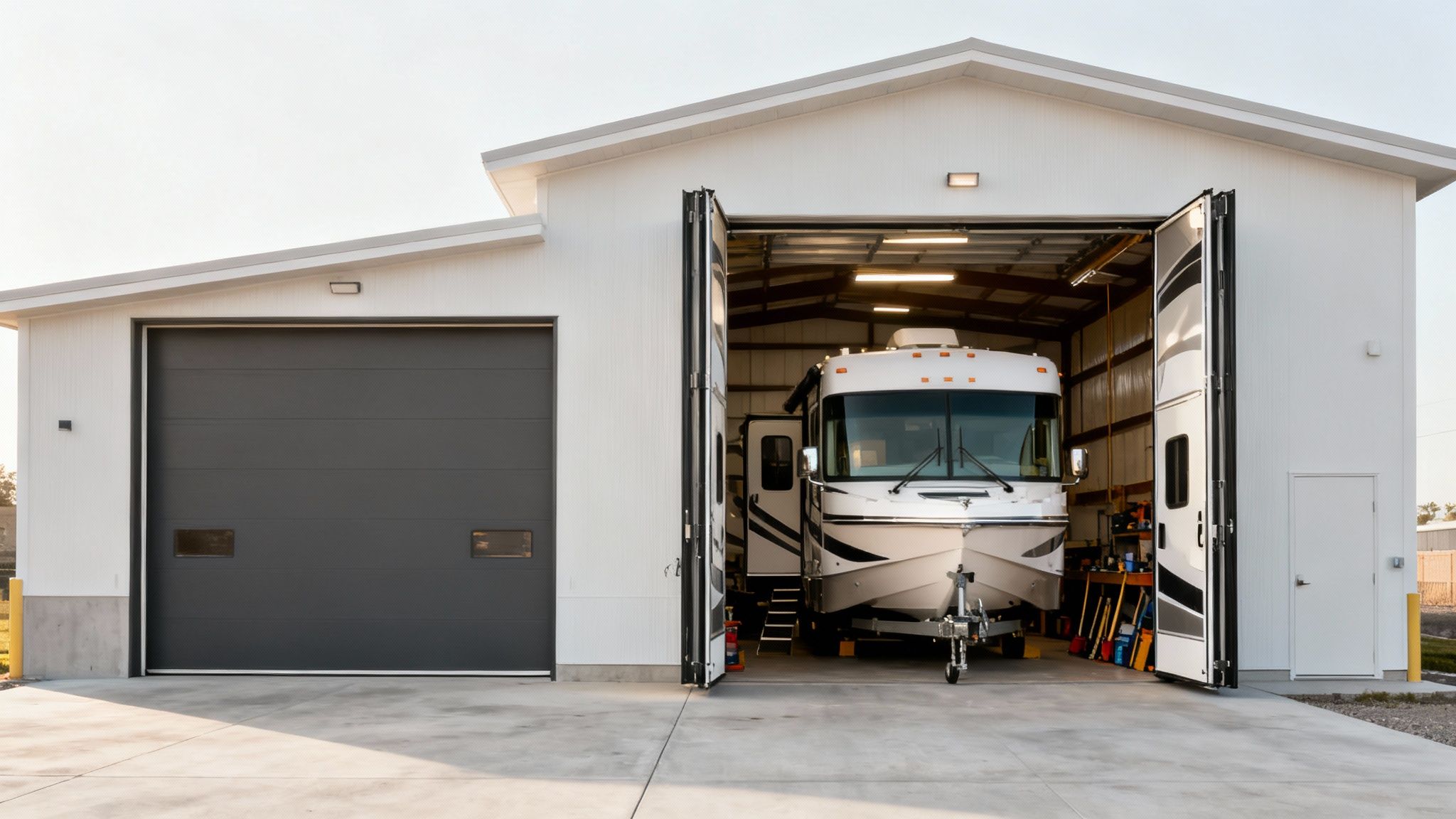

- Recreational Vehicles: This is a big one. RVs, fifth-wheels, and even larger boats demand a whole lot more vertical space. RV garage doors are often 12 feet high or taller, and their widths usually start at 10 or 12 feet to give you plenty of room to maneuver.
- Workshops and Hobby Garages: If you're a serious hobbyist or run a business from your garage, an extra-wide door can be a game-changer. Doors wider than the standard 18 feet give you a massive, unobstructed opening to move equipment or vehicles in and out with ease.
- Unique Architecture: Many older homes, especially in our historic Northeast Ohio neighborhoods, were built long before garage door sizes became standardized. A custom-sized door is often the only way to get a perfect fit that respects and preserves your home's original character.
Ordering a custom door isn't nearly as intimidating as it might sound. It really comes down to getting precise measurements and then working with a quality manufacturer to build a door to your exact specifications. Sure, it costs a bit more and has a longer lead time, but the result is a flawless fit that a standard door could never achieve.
Specialty sizes, like those for an RV garage which might be 12 to 14 feet wide and 12 feet tall, are designed to solve a very specific problem. Just keep in mind that while a custom door is the perfect solution for you, it might not have the same broad appeal as a standard size if you decide to sell your home down the road. You can learn more about how custom sizes impact ROI and dig deeper into why getting those measurements spot-on is so critical.
Local Garage Door Advice for Northeast Ohio
Choosing a garage door in Northeast Ohio isn't just about getting the measurements right. Our area has its own unique character and, of course, its own unique weather. From the historic homes in Cleveland Heights to the newer developments in Solon, finding the right door means finding one that fits your home and your lifestyle.
The architectural style of your house is the perfect place to start. A modern colonial, for instance, often looks fantastic with a classic raised-panel design. On the other hand, a beautiful century home might demand a traditional carriage-style door to maintain its historic charm. But looks are only part of the equation.
Built for Ohio Weather
Here in Northeast Ohio, our garage doors have to work hard. Heavy snow, freezing rain, and brutal ice storms can put a tremendous amount of stress on the entire system. That's why an insulated steel door is usually the best bet for our tough winters. It not only helps keep your garage warmer and cut down on energy bills, but the insulation also adds strength and rigidity, preventing the door from buckling under the weight of ice and snow.
It’s not just the door, either. You need an opener that can handle the job. A powerful and reliable opener, like a belt-drive or chain-drive model with at least a ½ horsepower motor, has the muscle needed to lift a heavy, insulated door without straining, even on the coldest mornings.
Local Rules and Expert Help
Before you make a final decision, remember to check for any local building codes or HOA guidelines in your community. These regulations can sometimes have specific rules about materials, colors, or even the style of windows you can have on your garage door.
Juggling all these different factors—style, weather performance, and local rules—can feel overwhelming. This is where getting a professional opinion makes all the difference. At Danny’s Garage Door Repair, we know the challenges Northeast Ohio homeowners face because we live and work here, too.
We can help you measure everything perfectly, choose a door that’s built to withstand our four-season climate, and make sure you're making a smart investment in your home. For a detailed breakdown of what to expect, take a look at our guide on the new garage door cost.
Give us a call today for a free estimate. Let our team take the guesswork out of the process and make it simple and stress-free.
A Few Final Questions on Garage Door Sizes
Even after you've done your homework, it’s natural to have a few more questions pop up. A new garage door is a big investment, and you want to get it right. Let's run through some of the most common questions we hear from homeowners to make sure you've got all the bases covered.
Think of this as a quick FAQ to clear up any lingering doubts. We want you to feel completely confident before moving forward.
Can I Replace One Big Door with Two Smaller Ones?
Absolutely, but it’s more involved than a simple replacement. To turn a single wide opening into two separate bays, you’ll need some light construction. This means adding a new central support post and framing to create two distinct openings that can support their own track systems.
Because this involves structural changes, it's definitely a job for the pros. A professional team will make sure the new post can handle the weight and that the entire setup meets local building codes.
Will My Truck or SUV Fit Under a Standard 7-Foot Door?
In most cases, yes. The majority of SUVs and pickup trucks rolling off the factory line today will clear a 7-foot-tall garage door without any trouble.
The real issue comes from modifications. If you’ve got a lifted truck, beefy off-road tires, or a permanent roof rack for gear, that standard opening can become a problem really fast.
My best advice is always the simplest: measure your vehicle. Get its exact height from the pavement to its highest point (including that ski rack!). And if you see a bigger truck in your future, it's wise to go with an 8-foot-tall door right from the start.
How Much More Is a Custom-Sized Door?
Opting for a custom size will definitely be more expensive than grabbing a standard, off-the-shelf door. You can generally expect to pay anywhere from 20% to 50% more. The final cost really hinges on the specific dimensions, the material you pick (a custom wood door will cost more than insulated steel), and any special design features.
While it's a higher upfront cost, getting a door that is built precisely for your garage is the only way to guarantee it works correctly, seals properly, and looks right.
What if I Have a Low Ceiling in My Garage?
Don't sweat it—a low ceiling is a common issue with a straightforward fix. If you don't have the typical 12 inches of headroom needed for a standard setup, we can use a low-headroom track kit. It’s a smart system that uses a double track along the ceiling for just the top section of the door, allowing it to turn that corner in a much tighter space. An experienced technician can look at your setup and know instantly which solution will work best.
