You've got the keypad in your hand, the garage light is dim, and you're trying to remember whether the opener is a LiftMaster, a Genie, or something older that came with the house. That's usually the moment people want a universal garage door keypad, because one device can give you easy entry without hunting for a remote, and it can do that across more than one opener brand when it's set up correctly.
Used well, it's one of the simplest upgrades on a garage. Used carelessly, it can also create avoidable access risks, especially in shared driveways, rentals, and small commercial spaces. The trick is knowing what the keypad really does, what it needs from your opener, and where the security trade-offs live.

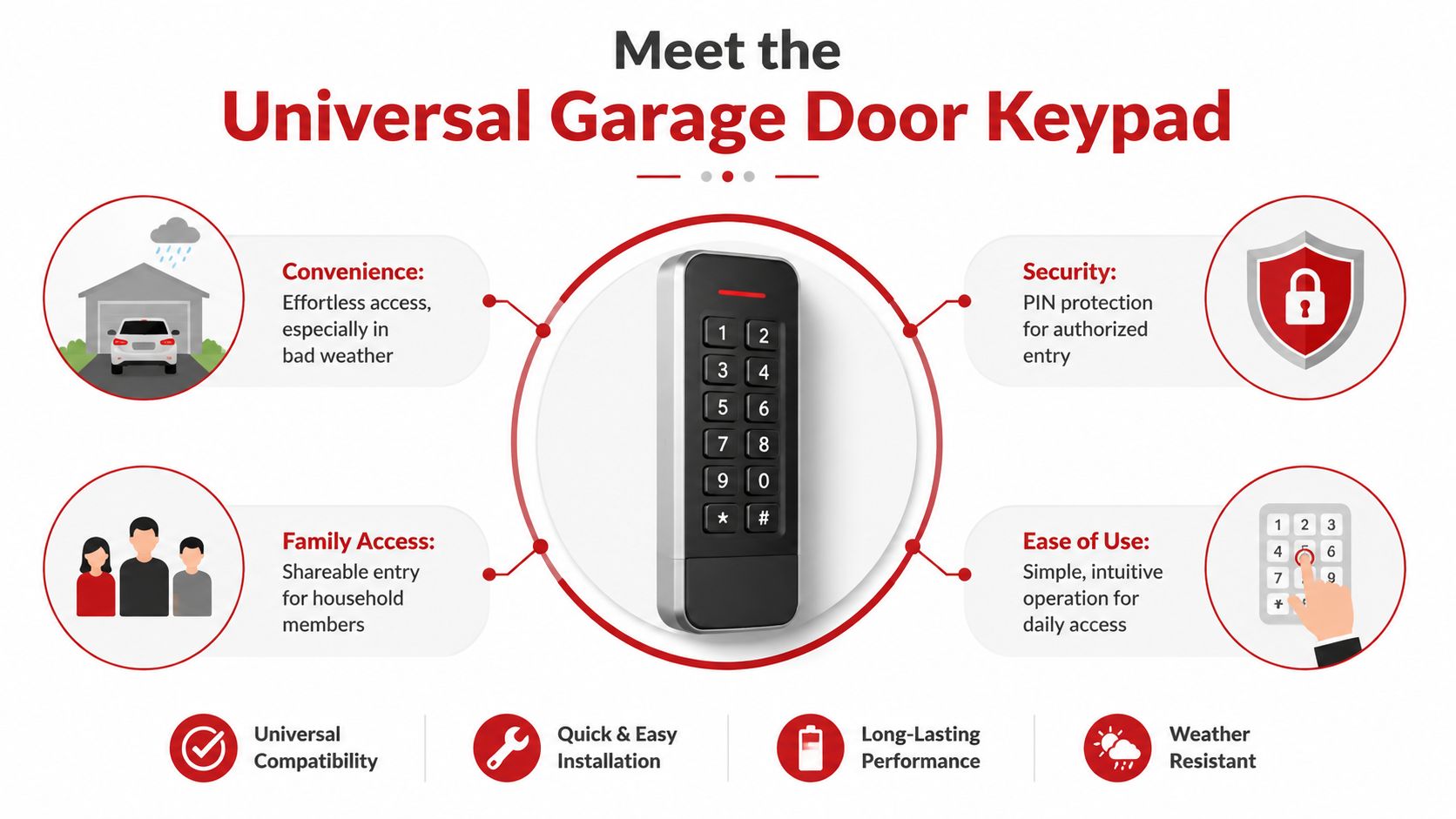

Meet the Universal Garage Door Keypad
A universal garage door keypad feels like a small convenience, but it solves a very real problem. You walk up with groceries, kids, or a wet jacket, punch in a PIN, and the door opens without a handheld remote changing hands or getting lost in a car seat. That ease is exactly why homeowners keep choosing these keypads, especially when one household has more than one garage door to manage.
What makes it universal is not magic. It's the way the keypad pairs a user PIN with opener-specific programming steps, so the front-end feels simple while the back-end matches the opener's code or radio logic. A representative FCC filing shows a setup flow that uses a 4-digit PIN, then a temporary test with the ENTER button, which is a good example of how modern units balance convenience and reprogramming flexibility. You can see that approach in the official filing for a universal wireless keypad, where the temporary PIN test is part of setup, not an afterthought, in the FCC filing for a universal wireless keypad.
For a homeowner, that's the main idea to keep in mind. The keypad is the easy part, the opener compatibility is the part that really matters. If you're ever locked out and unsure whether the issue is the keypad or the opener, a local emergency service like Minneapolis-St. Paul lock out service shows how often access problems come down to the entry system, not the door itself.
Practical rule: the keypad should feel simple to use every day, but its programming should never be treated like a one-size-fits-all process.
Understanding the Keypad Technology
A universal keypad is basically a translator. You type one 4-digit PIN, and the keypad sends a signal that the opener understands after the right programming steps are completed. This process resembles saving a contact in your phone, where the name remains simple for you, yet the underlying number must match exactly.
That's why old fixed brand codes are no longer the whole story. Modern universal keypads use programmable access logic, so the homeowner or technician can reconfigure them without replacing the entire system. The FCC filing mentioned earlier shows the user-facing side clearly, hold the * and # buttons until the lights stop blinking, enter a 4-digit PIN, press #, then test the temporary PIN with ENTER, which shows how setup can be both secure and flexible.
Why the back-end details matter
The confusing part is that brand name alone doesn't guarantee compatibility. Instructions for universal keypads can require matching the opener's learn-button color or frequency/channel before final enrollment will work, so the keypad has to speak the same RF language as the opener. That's why one keypad may work after a short pairing process, while another needs a more specific code path before it will respond.
This is also where multi-door control becomes useful. One 2020s-era instructional video shows a single universal keypad managing two doors and working with both Genie and LiftMaster systems, which is a good example of how the category has expanded beyond one-door convenience. In mixed-brand homes or light-commercial garages, that kind of flexibility cuts down on clutter and reduces the need for separate entry devices.
The keypad's PIN is the part you see. The opener's protocol is the part that decides whether the door moves.
Checking Opener Compatibility
Before you buy anything, check the opener first. A universal keypad can be broad in coverage, but it's still usually tied to named brands and specific pairing methods, not every opener on the market. One retail listing says support includes LiftMaster, Chamberlain, Genie, and Craftsman, which is helpful, but it's still not the same thing as universal fit for every system.
A simple compatibility check starts with three things. First, identify the brand on the motor unit. Second, find the learn-button color or frequency/channel detail in the opener housing or manual. Third, confirm whether your opener expects a PIN-only setup, a channel code, or a learn-button enrollment step.
| Opener Brand Compatibility at a Glance | ||
|---|---|---|
| Brand | Supported Models | Setup Notes |
| LiftMaster | Many named universal keypad listings include it | Look for learn-button or code matching |
| Chamberlain | Many named universal keypad listings include it | Check the opener family details before pairing |
| Genie | Many named universal keypad listings include it | Frequency or opener-specific code may matter |
| Craftsman | Many named universal keypad listings include it | Often overlaps with other listed families |
| Other brands | Not always covered | Verify the manual before buying |
For a deeper look at opener behavior, the guide on rolling code garage door opener is worth a read because rolling code logic often explains why a keypad that “should” work still needs a very specific pairing sequence.
If you're choosing between a standard opener and a custom setup, a page on premium custom garage doors can help you think through how the door system and access method should fit together. The keypad is only one part of the whole entry setup.

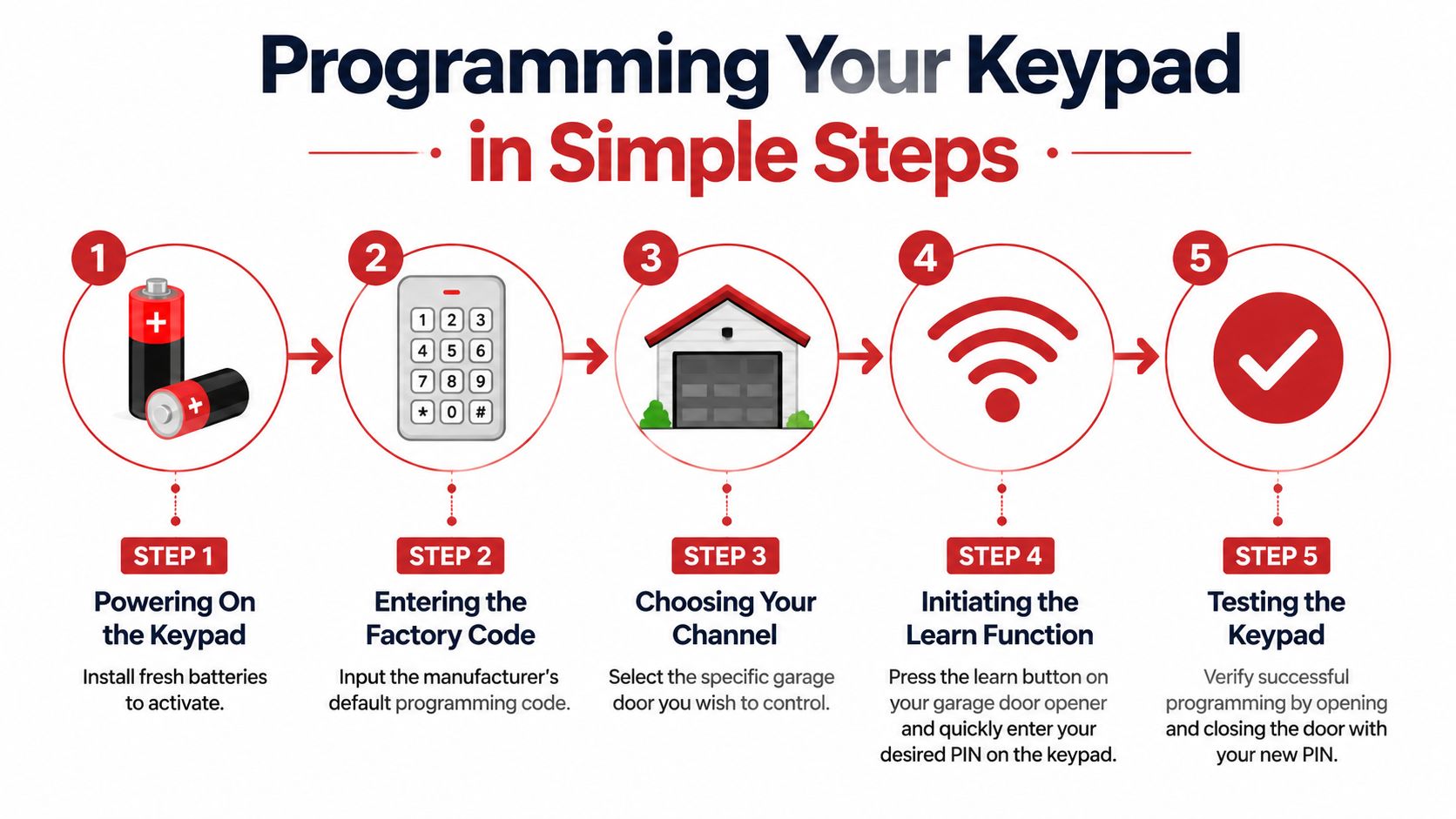

Programming Your Keypad in Simple Steps
A homeowner usually feels the tension right before programming a keypad. The good news is that the job is mostly about order. The keypad asks for two things, your PIN and the opener's matching logic. When both line up, the rest is a simple sequence of button presses.
Start with the keypad, then the opener
A universal keypad does not program itself just because the brand names look familiar. One instruction sheet for a universal keypad uses a factory routine that begins with a channel choice, then a program code, then the opener's learn button, and finally the new code. That sequence shows why universal means compatible, not automatic.
A clear way to handle the process is to move in order:
- Power the keypad. Fresh batteries matter because weak power can make a keypad look dead even when the buttons still light up.
- Enter the factory or setup code. Some units use a manufacturer default before you can assign your own PIN.
- Choose the right channel or door. Multi-door keypads may ask you to select which opener you are pairing.
- Press the opener's learn button. This is the handshake point between the keypad and the door opener.
- Enter your PIN and test it. A temporary test confirms the pairing before you rely on it every day.
The flow on a representative modern wireless keypad is very clear. Hold the * and # buttons until the lights stop blinking, enter a 4-digit PIN, press #, then test the temporary PIN with ENTER. That pattern shows the balance between security and convenience in the FCC filing for a universal wireless keypad.
Keep the programming room calm
Press one button at a time. A keypad can behave like a locked door with the right key in your hand, except the timing has to be exact. If the keypad flashes or the opener does not respond, stop and restart the sequence instead of guessing.
For a separate walkthrough on setup flow, the guide on programming an Overhead Door keypad can help you compare the general pattern with brand-specific steps.
Troubleshooting Common Programming Issues
The three failures I see most often are simple, but they're frustrating because they look like bigger problems than they are. First, the keypad and opener may not share the same RF protocol. Second, the batteries may be weak. Third, the learn-button sequence may have timed out before the PIN was entered.
Match the signal before you blame the keypad
Compatibility depends on the opener's radio/security protocol, not just the brand name. One set of programming instructions explicitly requires selecting a code tied to the opener's learn-button color or frequency/channel before final enrollment, which means a keypad can be the right model and still fail if the RF match is wrong. You can see that requirement in the universal keypad programming instructions.
Check the obvious stuff first
A weak battery can make the keypad light up without sending a strong enough signal. That's why I always tell homeowners to replace the batteries before they re-run the setup. It's a small step, but it removes one of the most common causes of false failure.
Watch the timing window
Most learn-button systems give you only a short enrollment window. If you press the opener's learn button and then pause too long, the opener forgets the pairing attempt and you have to start again. That's why the safest fix is usually to stand close enough to the opener, keep the keypad in hand, and enter the PIN immediately after the learn button is pressed.
A useful mindset is this, the keypad either has the correct code path or it doesn't. If it doesn't, don't keep hammering buttons. Start over, confirm the channel or frequency, and try the sequence from the beginning.
Choosing and Installing Your Keypad Safely
The best keypad location is the one you can reach easily without exposing it to more weather than necessary. A side wall near the entry door often works better than a spot that gets direct sun or heavy rain all day. That kind of placement helps with convenience and can reduce battery strain over time.
Installation also means checking the garage door itself, not just the keypad. Before mounting, test the door's auto-reverse feature and make sure the manual release works smoothly. If either one feels off, fix that first. A keypad shouldn't be the thing that distracts you from a door safety problem.
A basic install checklist
- Confirm signal reach. Stand where the keypad will mount and make sure it's close enough to the opener for reliable pairing.
- Mount it level. A crooked keypad is harder to use and can be annoying for guests or family members.
- Protect it from direct sunlight. Less heat usually means less battery stress.
- Keep the keypad visible. People should be able to find it quickly in the dark or bad weather.
- Use the right model for the opener. The hardware should match the compatibility notes you checked earlier.
For a practical mounting walkthrough, the article on how to install a garage door keypad is a solid reference if you want to compare physical installation with programming.
I also like to remind homeowners that a keypad can live inside a broader service plan. Danny's Garage Door Repair provides garage door keypad programming and support, so when a keypad issue turns out to be part of a larger opener problem, one service call can sort out the whole system.
When to Call Danny's Garage Door Repair
Call a pro when the keypad keeps dropping out, the learn button will not respond, or the setup starts to get confusing across more than one door. Those are the moments when a technician can save time and help keep access from becoming less secure. A keypad that controls multiple doors can be convenient, but it also creates more points to check if one door behaves differently from the others. Danny's Garage Door Repair serves the Greater Cleveland area, offers 24/7 emergency response, and backs its work with a satisfaction guarantee.
If you are ready for help, have the keypad model, opener brand, and any learn-button details ready before you call. That makes the visit faster and helps the technician focus on the actual fault instead of starting from zero. If you want to schedule service or ask for a free estimate, visit Danny's Garage Door Repair.
