That little gap under your garage door? It's a much bigger headache than it looks, especially with our Northeast Ohio weather. When the weather seal on your garage door bottom gives up, it’s basically an open invitation for icy drafts, summer downpours, and every bug in the neighborhood. Fixing it is easily one of the smartest, most cost-effective things you can do for your home.
The Real Cost of a Failing Garage Door Seal
Think of a worn-out seal as leaving a window cracked open all year. It might seem small, but that tiny opening has a massive impact on your home's comfort and your wallet. During a bone-chilling Cleveland winter, it’s letting all that expensive heated air slip right out while cold air sneaks in, making your furnace work way harder than it should.
But the consequences go beyond just feeling a chill. A bad seal can create a whole list of frustrating—and expensive—problems.
- Skyrocketing Energy Bills: A busted bottom seal on a standard garage door can leak as much air as a 3×3-foot hole. In an uninsulated garage, that kind of air infiltration can be responsible for up to 30% of a home's energy loss. For families here in Ohio, that could easily mean an extra $150-$300 tacked onto heating bills each winter.
- Unwanted Pests: Mice, spiders, and other critters don't need much room to get inside. A cracked, brittle seal is the perfect welcome mat, turning your garage into their new favorite hangout.
- Water Damage: Here in Ohio, we get our fair share of heavy rain and melting snow. Water can easily seep under a faulty seal, pooling on your garage floor. Before you know it, you’re dealing with damaged boxes, deteriorating concrete, and even mold.

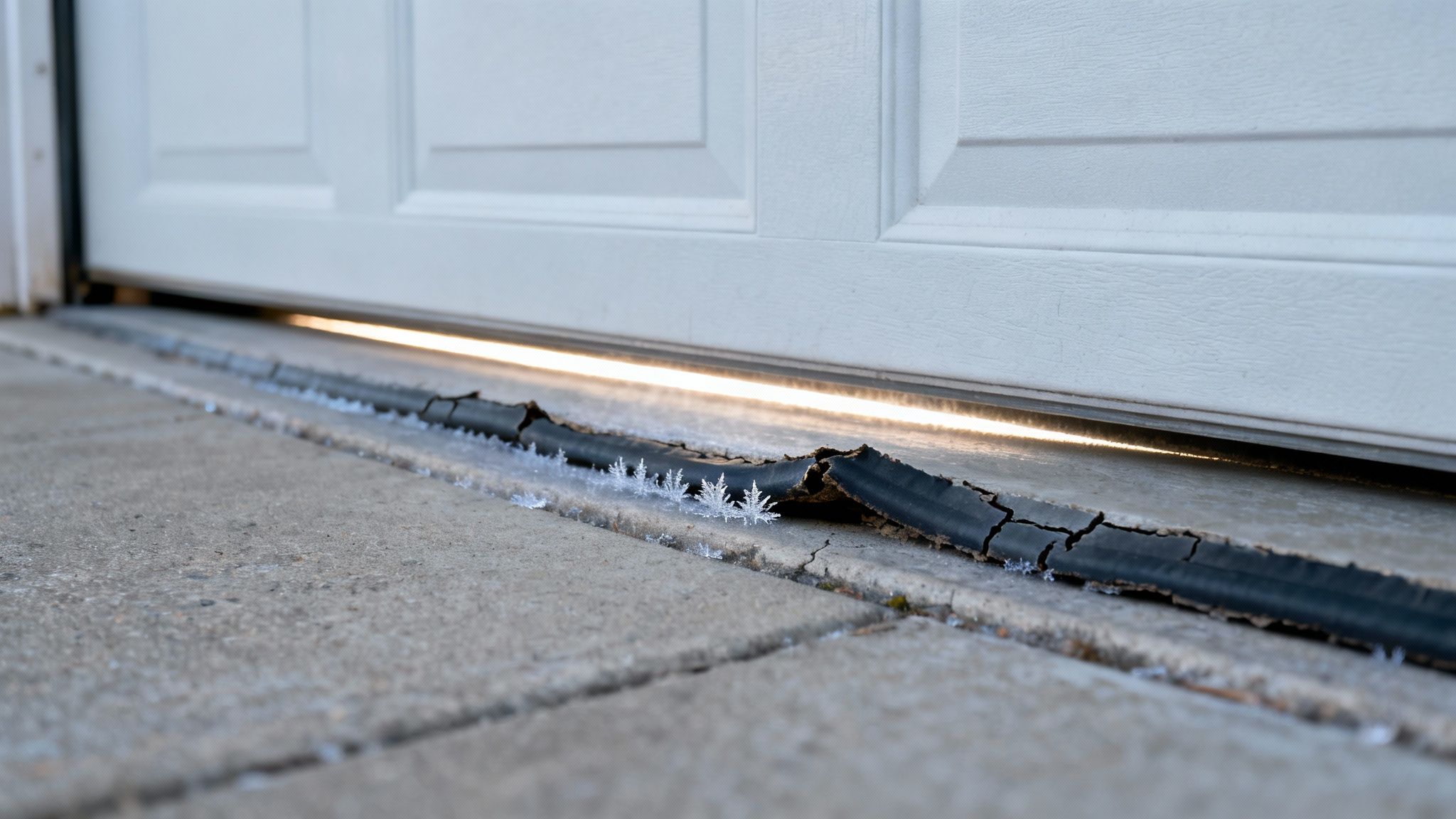

How to Spot a Worn-Out Seal
Not sure if your seal has seen better days? The signs are usually pretty obvious once you know what to look for. Go ahead and get down on your hands and knees for a close look at that rubber or vinyl strip at the bottom of the door.
It's definitely time for a replacement if you spot any of these tell-tale signs:
- You Can See Daylight: This is the easiest one. If you can see light peeking through from outside when the door is shut, you have a problem.
- It's Cracked and Brittle: A good seal is flexible and soft. If yours feels hard, has visible cracks, or is literally falling apart, it’s completely lost its ability to seal anything.
- There's a Noticeable Draft: On a windy day, stand inside the garage with the door closed. If you can feel a breeze on your ankles, that's your seal telling you it’s done.
Catching these issues early is key. It protects your home and stops a small, easy fix from spiraling into a much bigger headache. If you're ready to learn more about fixing these issues, you can find great information in our guide on how to seal garage door gaps.
Choosing the Right Garage Door Bottom Seal
Picking out a new weather seal for your garage door bottom isn't as simple as grabbing the first one you see on the shelf. If you get it wrong, you’ll be doing this job all over again a lot sooner than you planned. The perfect seal has to match the type of retainer—that’s the metal track—fixed to the bottom edge of your garage door.
Think of it like a lock and key. The seal has to be the exact shape to fit the retainer, or it's a no-go. Most residential doors you'll find around here use a T-shaped seal, but let's break down the common styles you might run into.
First Things First: Identify Your Retainer Type
Before you even think about buying a replacement, you've got to play detective. The best way to do this is to pull out a small section of the old, worn-out seal so you can get a clear look at its profile.
- T-Channel Retainer: This is the one you’ll see most often. It has two parallel tracks that the "T" shaped ends of the weather seal slide right into. It's a classic for a reason—it works.
- Beaded Retainer: Instead of a "T," this seal has a round bead on each side that fits snugly into a C-shaped channel. It’s less common, but they’re definitely out there.
- L-Shaped Retainer: This style typically uses a seal that folds over the bottom edge of the door, forming an "L" shape. It’s usually held in place with screws or sometimes an adhesive.
- U-Shaped Seal: This one is a clever combination of both the seal and the retainer. It wraps right around the bottom of the door panel and is fastened with screws. This is a fantastic solution for older wooden doors that might not have a built-in metal track.
Once you know the shape, grab a tape measure. You need to measure the width of your old seal when it’s laid out flat. This measurement is usually between 3 and 6 inches and is crucial for making sure the new seal can handle any uneven spots on your garage floor.
Pro Tip: If your concrete floor is a little wavy with some dips and low spots, always go for a wider seal. That extra material gives it the flexibility it needs to compress properly and create a solid barrier, even where the floor isn't perfectly level.
Vinyl vs. Rubber: What's Better for Cleveland Weather?
Now, let's talk materials. Your main choices are vinyl and rubber, and for our unpredictable Cleveland weather, there's a clear winner. The constant freeze-thaw cycles we get can absolutely shred a low-quality seal in just a year or two.
Vinyl seals are usually the cheaper, more budget-friendly option. They work just fine in places with mild weather. The problem is, they get stiff and brittle when the temperature plummets. A rigid seal can't conform to the little imperfections in your garage floor, leaving gaps that let that frigid winter air whistle right on in.
Rubber seals, on the other hand, are the way to go for Northeast Ohio. Specifically, look for ones made from high-quality EPDM (ethylene propylene diene monomer) rubber. This stuff is the real deal—it stays pliable and flexible even when the temperature drops well below freezing, guaranteeing you a tight, consistent seal all winter long.
To help you decide what's best for your Northeast Ohio home, here's a quick look at the pros and cons of the two most common weather seal materials.
Garage Door Bottom Seal Material Comparison
| Material | Best For | Pros | Cons |
|---|---|---|---|
| Vinyl | Milder climates with minimal temperature swings. | Inexpensive; widely available. | Stiffens and cracks in cold weather; shorter lifespan in harsh climates. |
| Rubber (EPDM) | Cold climates with freeze-thaw cycles, like Northeast Ohio. | Stays flexible in extreme cold; durable and long-lasting; excellent seal. | Slightly more expensive upfront. |
Honestly, spending a few extra bucks on a quality rubber weather seal is one of the smartest moves you can make. It will outlast the cheaper options by years and do a far better job protecting your garage from the elements, which saves you money and a whole lot of hassle down the road.
Your Hands-On Guide to Replacing the Seal
Alright, you’ve picked out the perfect new weather seal for your garage door bottom, and now it’s time to roll up your sleeves. Don't worry, this is a very manageable DIY project. I'll walk you through the process just like I would if I were right there in your garage, sharing some of the tricks I’ve learned from working on homes all over Northeast Ohio.
Safety and Tools First
Before we jump in, let’s talk safety. Garage doors are heavy, and the springs that help lift them are under a ton of tension. For this job, you'll be working with the door partially open, so it's absolutely critical to make sure it can't move.
First things first: unplug the garage door opener. This is a simple but crucial step to prevent anyone from accidentally hitting the button while you're working. Next, lift the door about three to four feet off the ground and secure it with a pair of C-clamps, clamping one onto each vertical track right below the bottom roller. This is your safety net.
Now, let's get your tools together. The good news is you probably have most of this stuff in your toolbox already.
- Pliers or Vise Grips: A must-have for yanking out a stubborn old seal.
- Flathead Screwdriver: You'll need this to gently pry open the ends of the retainer track.
- Utility Knife: For trimming the new seal to a perfect length.
- C-Clamps: Two of them to safely lock the door in place.
- Spray Lubricant or Soapy Water: This is a pro tip that makes a world of difference. It helps the new seal slide in smoothly.
- Safety Glasses and Gloves: Always a smart move for any home project.
Removing the Old Seal
With the door safely clamped and immobile, it's time to get that old, worn-out seal out of there. Start at one end of the door. You’ll probably notice the aluminum retainer track has been crimped shut to keep the old seal from sliding out. Take your flathead screwdriver and carefully pry these crimped ends open.
Once the track is open, grab the end of the old seal with your pliers and start pulling. If you're lucky, it will come out in one long piece. More often than not, especially if it’s old and brittle, it’ll crumble and break apart. Just keep working your way down the door until it’s all gone.
After the old seal is out, take a minute to clean the retainer channels. A quick wipe with a rag or a brush to clear out any dirt, grime, or leftover rubber bits will make installation much easier. A clean track is key.

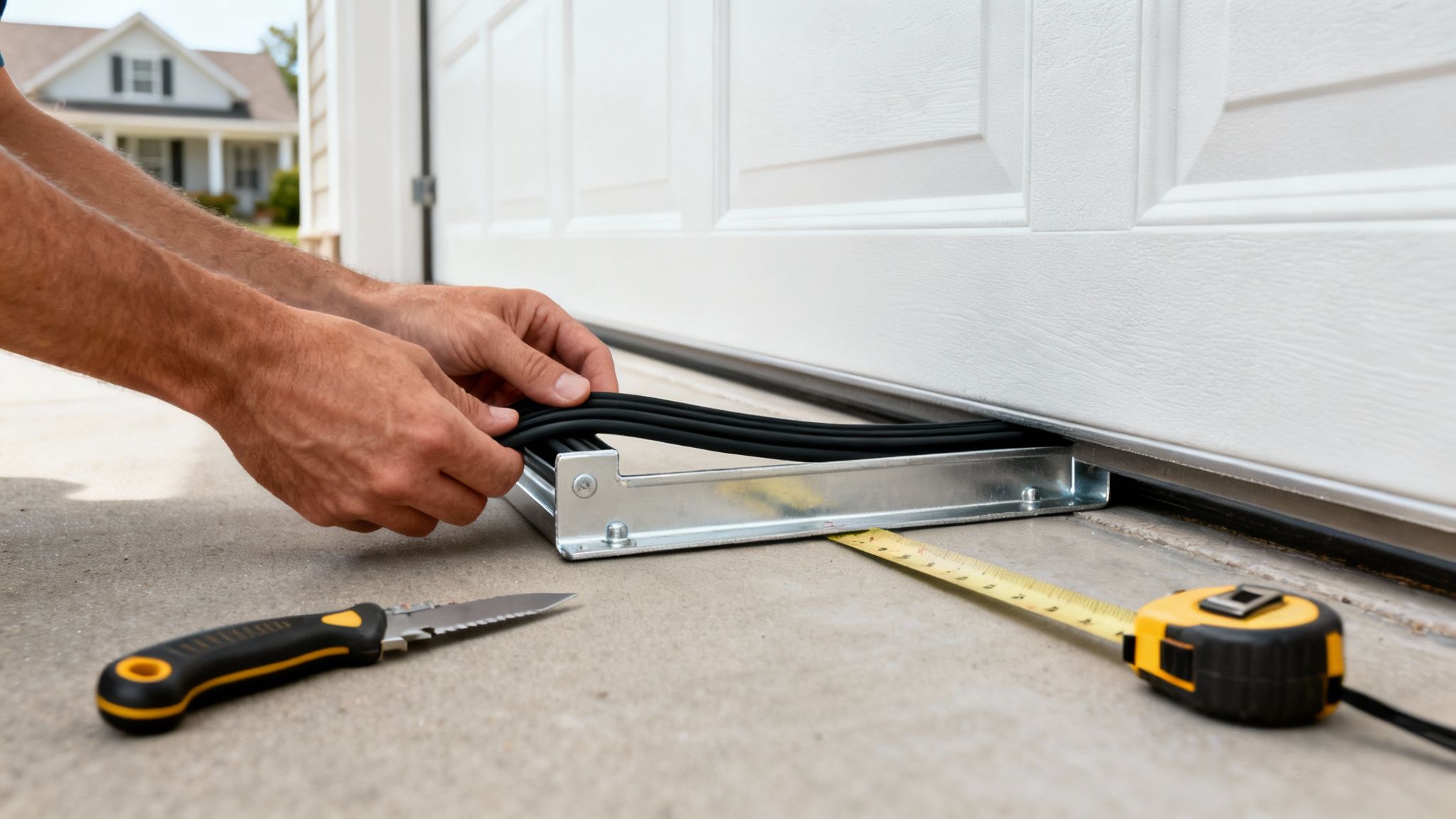

Installing the New Weather Seal
This is where the magic happens. A second set of hands can be really helpful here—one person feeding the seal while the other pulls—but you can definitely do it solo.
Start by spraying the inside of the tracks with a silicone-based lubricant or just some soapy water in a spray bottle. Don't be stingy with it! This one simple step makes the new rubber glide instead of bunching up and fighting you the whole way.

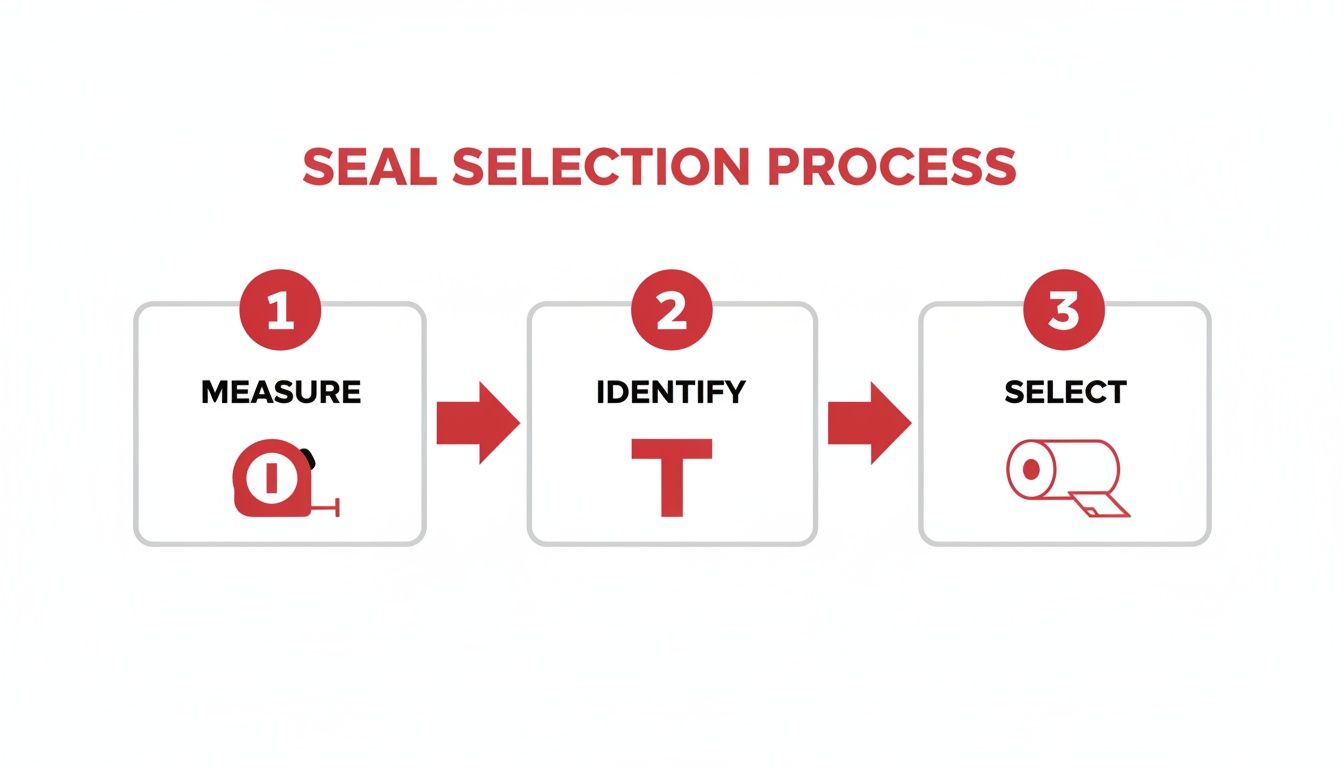

This visual guide breaks down the whole process, from measuring to selecting the right seal.
As you can see, a successful replacement starts long before you even touch the old seal; it's all about getting the measurements and profile right from the start.
Now, grab your new weather seal garage door bottom. If it's a T-style seal, I find it helps to fold the material into a "U" shape to get both "T" ends into the channels at the same time. Start feeding it into the retainer.
Our Best Tip: Don't try to push the seal all the way across. Instead, feed about six inches in, then walk to the other end of the door and gently pull it through. This pull-through method is so much easier than pushing.
Once the new seal is completely through, center it so you have a few extra inches sticking out on both sides. Use your utility knife to trim the excess, leaving about one inch of extra material on each end. Tuck this extra bit back into the hollow part of the seal. This bunches it up and acts as a stopper, preventing the seal from sliding out of the track over time.
Finally, take your pliers and gently re-crimp the ends of the retainer track that you opened earlier. That's it—the new seal is locked in. For a more in-depth look with pictures, you might want to check out our complete guide on how to install garage door weather stripping.
Now you can remove your C-clamps, plug the opener back in, and lower the door. Take a step back and admire your handiwork. You just gave your garage a serious upgrade against weather, pests, and drafts.
Troubleshooting Common Installation Hiccups
Even the most straightforward DIY project can throw you a curveball. You’ve got the right parts, the right tools, and you're ready to go, but something just isn’t working. When it comes to replacing a weather seal on a garage door bottom, a few common issues can pop up, turning a quick job into a frustrating afternoon. Don’t worry, we’ve seen them all, and there’s usually a simple fix.
The number one complaint we hear is that the new seal just won’t slide into the retainer track. It bunches up, gets stuck, and refuses to budge. Nine times out of ten, friction is the enemy here. That simple trick we mentioned earlier—using soapy water or a silicone lubricant—is your absolute best friend. A clean, lubricated track makes a world of difference.
Of course, sometimes the problem is the track itself. Years of bumps and bangs can leave the aluminum retainer dented or squeezed shut, making it impossible to thread the new seal through.
Dealing with a Stubborn Retainer Track
If you suspect a bent track is the problem, get down on the floor and give it a good look. Scan the entire length for obvious dings, dents, or sections that look narrower than the rest.
- Minor Bends: For small indentations, you can often use a flathead screwdriver or a pair of pliers to gently pry the channel back open. The key is to work slowly and carefully. You want to reshape it, not crack the aluminum.
- Significant Damage: If the track is badly crushed or broken in a spot, you're better off replacing the whole retainer. It's a bigger job, for sure, but it’s the only way to guarantee the new seal will fit right and actually do its job.

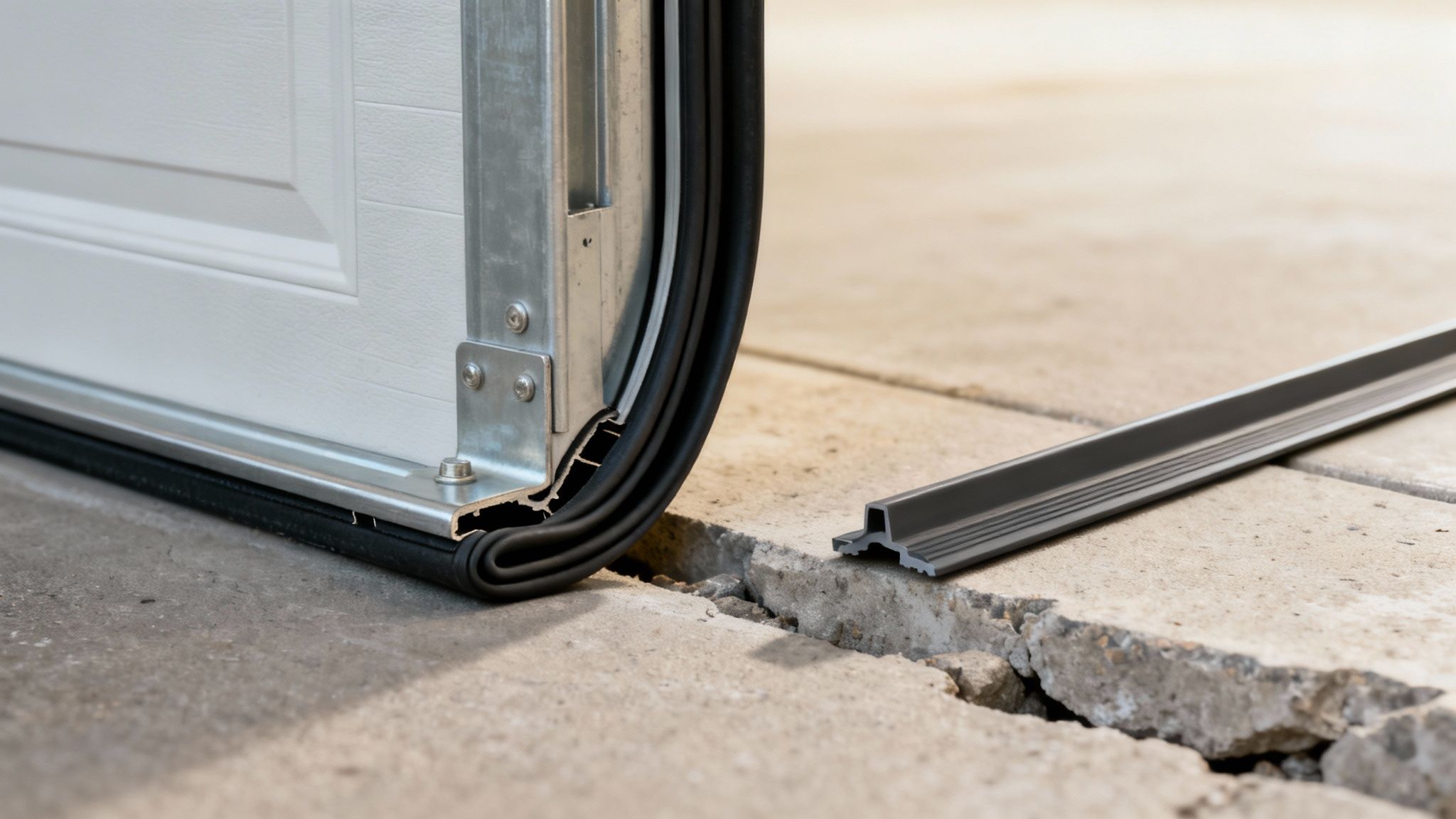

Sometimes, the installation goes perfectly, but you still see daylight. The issue isn't the seal or the track—it's the floor. This is a huge headache in older Cleveland homes where the concrete garage floor has settled, heaved, or cracked over decades.
A standard seal can only compress so much. If your floor has low spots deeper than half an inch, you may need a more robust solution to get a truly weatherproof barrier.
Solving Gaps from an Uneven Floor
When your concrete is the real culprit, don't give up. You have a couple of excellent options to seal those persistent gaps for good.
First, consider an extra-wide or thick weather seal garage door bottom. These are specifically made with more material to fill larger, uneven spaces. Their bulk and flexibility can often be just enough to close off those frustrating dips and cracks.
A second, and often more permanent, solution is to install a garage door threshold seal. This is a heavy-duty rubber strip that you glue directly to the concrete floor right where the door comes down. Your bottom seal then presses against this threshold, creating an amazing double barrier against water, drafts, and pests. It’s the go-to fix for sloped driveways or floors with some real character, ensuring a tight seal where it matters most.
Maintaining Your New Seal and Knowing When to Call a Pro
Congratulations—you’ve installed the new weather seal on your garage door bottom, and your garage is now much better protected from the elements. But the job isn't quite done. Let’s talk about how to make sure that new seal lasts as long as possible. A little bit of simple upkeep really does go a long way.
The easiest thing you can do is give the seal a quick cleaning a few times a year. Just grab a cloth and wipe it down with some mild soap and water. This gets rid of the dirt, road salt, and grime that can slowly eat away at the rubber or vinyl. While you're at it, take a second to look for any new cracks or damage. This simple step fits right into a routine check-up, just like the ones on our complete garage door maintenance checklist.
When a New Seal Isn't the Real Fix
Sometimes, a gap under your garage door is just a symptom of a bigger problem. A new weather seal is a great start, but it’s not a magic wand that can fix underlying structural issues. If you're seeing any of the following warning signs, it’s probably time to put down the tools and get a professional opinion.
These are clear signs you need an expert:
- The Door is a Beast to Lift: If opening the door manually feels like a deadlift, your springs could be on their last legs. That’s a major safety hazard and puts a ton of strain on your opener.
- You Can See Panel Damage: Dented, bent, or cracked panels weaken the whole door structure. No matter how good your new seal is, it won't be able to close the gap correctly if the door itself is compromised.
- The Concrete is Cracked or Uneven: If your garage floor has some serious cracks or has settled unevenly over time, a new seal is really just a band-aid on a much bigger foundation issue.
- Your Door Closes Crooked: A door that doesn't land flush with the ground is a dead giveaway that something is wrong with the cables, rollers, or tracks. This kind of imbalance will chew up a new weather seal in no time.
At Danny's Garage Door Repair, serving Cleveland since 2015, we've seen it all. Bottom seal replacements are one of our most common jobs, often showing up in 50% of our annual tune-ups where we find gaps bigger than a half-inch. A gap that size can let in up to 400 CFM of air, which is basically like leaving a window wide open all winter. With a little care, a quality seal can last 7-12 years, which is a smart investment when you realize 38% of global overhead doors are sectional types prone to this kind of wear.
Knowing when to DIY and when to call for backup is a huge part of smart homeownership, similar to managing all your other property maintenance and repairs. For anything complex or dangerous involving your garage door, calling a pro is always the safest and most effective choice.
Your Top Garage Door Bottom Seal Questions Answered
Working with homeowners around Greater Cleveland, we get asked a lot about these seals. It's a common maintenance item, so it’s no surprise people have questions. Here are some of the most frequent ones we hear, along with some straightforward, practical answers.
How Often Should I Replace My Garage Door Bottom Seal?
Here in Northeast Ohio, a good rule of thumb is to give it a quick check every year, especially as we head into spring. Our winters are tough, and the constant freeze-thaw cycles can really do a number on rubber and vinyl, making them brittle way ahead of schedule.
A quality weather seal on a garage door bottom can last anywhere from 5 to 10 years. But if you're seeing daylight peeking through, noticing visible cracks, or if the material feels hard and inflexible instead of soft and pliable, it's time for a replacement.
Can the Wrong Seal Really Hurt My Garage Door Opener?
It's not going to cause immediate, catastrophic damage, but an ill-fitting or worn-out seal can definitely put a strain on your opener. Think of it like trying to walk through thick mud. The seal can create extra drag or even get snagged, forcing the opener's motor to work much harder to open and close the door.
Over time, that extra stress can lead to premature wear and tear on the motor and gears. A properly fitted seal ensures everything glides smoothly, just like it's supposed to.
My Garage Floor Is Uneven. Will a New Bottom Seal Close the Gap?
A fresh, flexible seal will absolutely make a difference, but it's not a magic bullet for a seriously uneven floor. If you have significant dips and waves in your concrete, a standard seal might still leave some small gaps.
Your best bet is to choose a seal with a taller and thicker profile. This gives it more material to compress and conform to the low spots.
For a really solid fix, consider adding a garage door threshold seal. You glue this strip directly to the floor, creating a raised, even surface for the bottom seal to press against. It’s an excellent one-two punch for keeping water and pests out.
What's the Deal with U-Shaped vs. T-Shaped Seals?
This all comes down to how the seal actually attaches to the retainer on the bottom of your garage door. It's crucial you get the right one for your setup.
- U-Shaped Seal: This one looks like a "U" and literally wraps around the bottom edge of the door. It's often held in place with screws and is a common sight on older wooden doors that don't have a modern, built-in track.
- T-Shaped Seal: This is by far the most popular style on modern steel and aluminum doors. It has two "T" shaped edges that are designed to slide perfectly into a pair of channels on the door's metal retainer.
If you've taken a look at your door and the project feels like more than you want to tackle, that's perfectly fine. The team at Danny's Garage Door Repair is always ready to step in with professional advice and expert service. You can get a free estimate by visiting us at https://garagedoors101.com.
