Ever wonder what does the real heavy lifting every time your garage door goes up and down? It’s not your electric opener—it’s the powerful torsion spring that does almost all the work. This heavy-duty coiled spring, sitting on a metal bar just above your garage door, is the true muscle of the whole system.
The Unsung Hero of Your Garage Door
It's a common mistake to think the automatic opener is what lifts that heavy garage door. But while the opener gets things started, the torsion spring provides nearly all the muscle. Without it, your opener would burn out in no time trying to lift a door that can easily weigh over 300 pounds.
Think of it like winding up a toy car. When your garage door comes down, cables turn the metal shaft, twisting the torsion spring tight. This process stores a massive amount of rotational energy.
When you hit the button to open the door, the spring unwinds and releases that stored energy. This controlled force perfectly counterbalances the door's weight, making it feel almost weightless to the opener. That's why you—or your opener—can lift it with very little effort. The spring does about 90% of the work.
Why This Matters for Your Home
Understanding what the torsion spring does is key to keeping your garage door safe and dependable. Its entire job is to make sure the door moves smoothly and is perfectly balanced every time you pull into your driveway.
Here’s a simple breakdown of its main purpose:
- Counterbalancing Weight: It perfectly offsets the door's massive weight, so it doesn't come crashing down.
- Reducing Strain: It takes the heavy load off your electric opener, helping the motor last much longer.
- Ensuring Smooth Operation: A spring with the right tension lets the door glide up and down the tracks evenly, without jerking or struggling.
A healthy torsion spring system is the single most important part of a long-lasting, safe garage door. It’s the difference between a door that works perfectly for years and one that’s always giving you trouble.
So, while the opener gets all the attention, the torsion spring is the quiet workhorse doing the hard labor behind the scenes. Recognizing its importance is the first step to really understanding how your garage door works.
How a Torsion Spring System Works
To really get what a torsion spring does, it helps to see how the whole system works together. It’s a surprisingly simple yet powerful setup where a few key parts act in perfect harmony to lift a door that weighs hundreds of pounds.
The real action happens when your garage door closes. As the door moves down, the lifting cables attached to the bottom corners turn the cable drums at each end of the torsion tube. This rotation is what winds the torsion spring up tightly, loading it with an incredible amount of potential energy. It's a lot like twisting a rubber band—the more you twist it, the more power it stores, ready to be released.
The Components Working Together
It's definitely a team effort. No single part does everything. Each component has a specific job that, when done right, leads to that smooth, balanced movement you expect from your garage door.

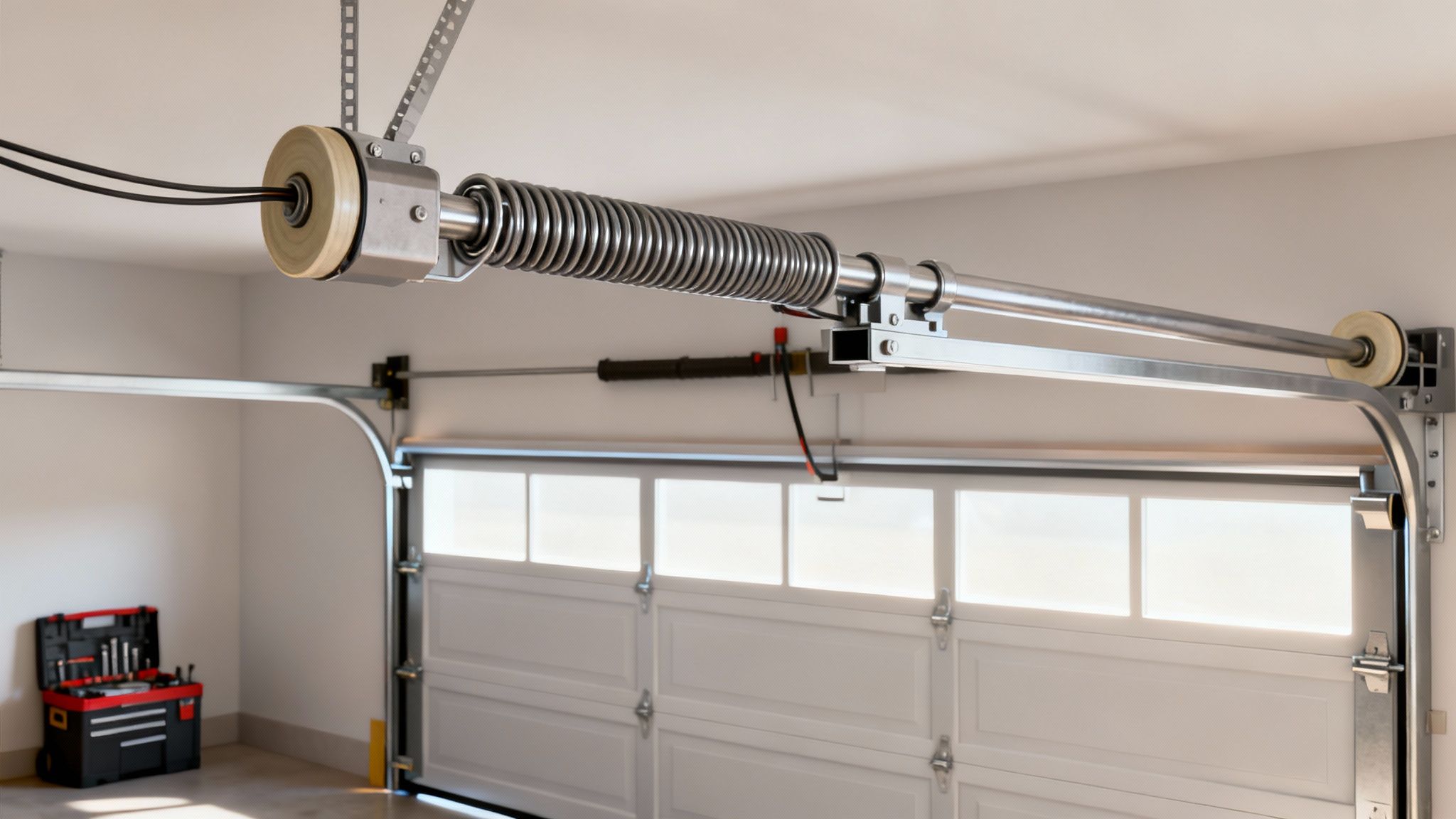

- Torsion Spring: This is the powerhouse. It stores and releases rotational energy to do the heavy lifting.
- Torsion Tube: A hollow steel shaft that runs across the top of your door. The spring is mounted on it, and as the tube turns, it transfers the spring's power.
- Cable Drums: You'll find these grooved drums at each end of the torsion tube. The lifting cables neatly wind and unwind around them as the door moves.
- Lifting Cables: These high-tension steel cables connect the bottom of the door to the drums, pulling the door up evenly from both sides.

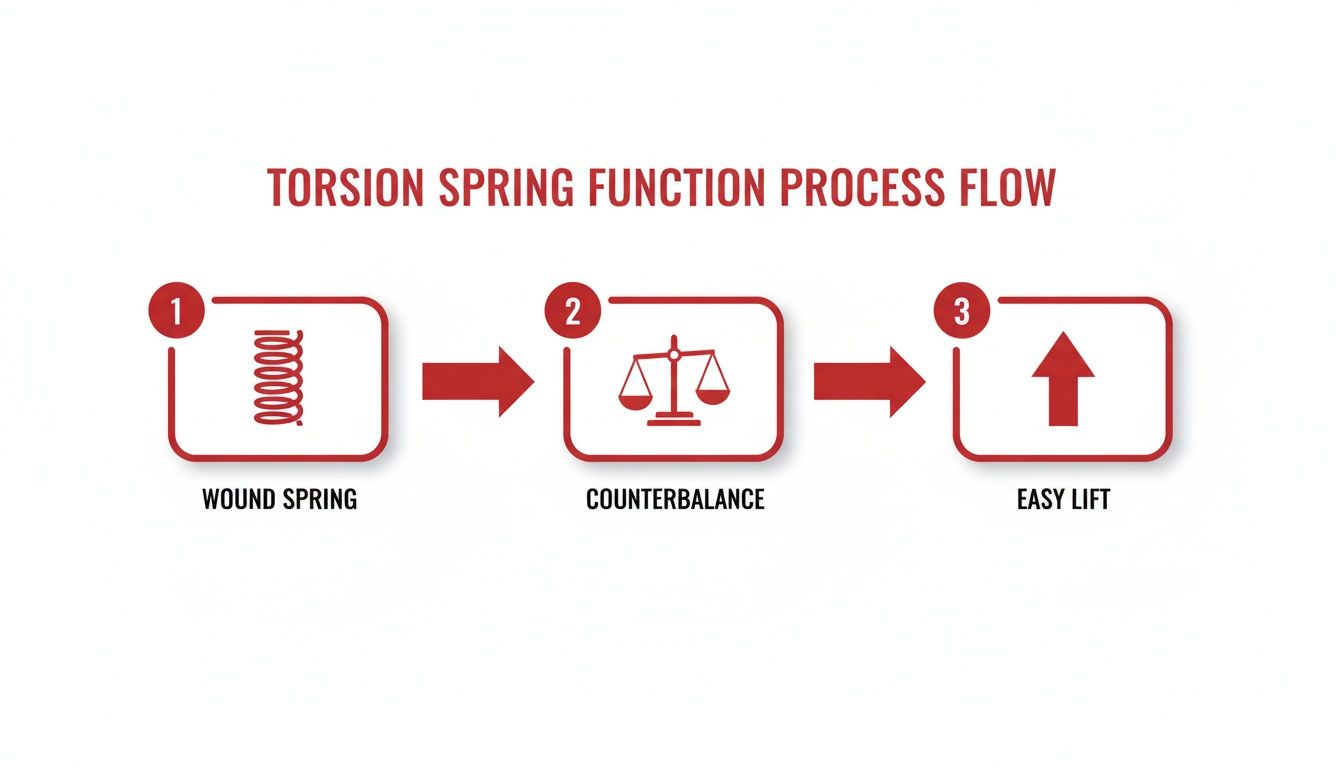

This diagram shows how the wound spring uses its stored energy to counterbalance the door’s weight, resulting in an effortless lift.
As you can see, the process is logical: store energy, then provide a balanced lift. That’s the secret to why this system works so well.
From Stored Energy to a Smooth Lift
When you press your garage door opener, the whole process happens in reverse. The spring starts to unwind in a controlled way, releasing its stored energy. This force turns the torsion tube, which then rotates the cable drums. The drums wind up the lifting cables, pulling the garage door upward smoothly and evenly.
This balanced lift is critical. It prevents the jerky, lopsided movement that can damage your door panels and tracks over time.
This whole setup is a huge step up in garage door engineering. Properly calibrated springs reduce the strain on your opener, helping its motor last a lot longer. For the system to work right, it needs just the right amount of force—a delicate balance that requires expert knowledge. You can see how important this is in our guide on how to adjust garage door tension.
Torsion Springs vs. Extension Springs
If you look at the mechanics of your garage door, you'll find one of two types of springs doing the heavy lifting. Both systems have the same job—to counterbalance the door’s huge weight—but they are worlds apart in how they work, how long they last, and most importantly, how safe they are. Knowing which one you have tells you a lot about your system.
The two main players are torsion springs and extension springs. You can usually tell the difference with a quick glance. Torsion springs are thick, heavy-duty coils mounted on a metal shaft right above the garage door opening. Extension springs, on the other hand, are skinnier springs that run alongside the horizontal tracks on each side of the door, stretching and contracting like giant rubber bands.
Safety: The Single Biggest Difference
The number one reason torsion springs have become the modern standard comes down to safety. Extension springs are under an incredible amount of tension, and when one fails, it can snap and fly across the garage with enough force to cause serious injury or damage. Many have a safety cable running through them to help prevent this, but it’s not a foolproof system.
Torsion springs are a much safer design. When a torsion spring breaks, the coil just splits apart—usually with a loud bang—but the spring itself stays put on the torsion tube. This simple but critical design feature keeps it from becoming a dangerous projectile, protecting you, your family, and your cars.
Because they stay on the torsion bar when they break, torsion springs are significantly safer than extension springs. The risk of injury or property damage from a snapped spring is almost completely eliminated.
Durability and Performance
Beyond the huge safety advantage, torsion springs simply provide a smoother, more controlled lift. They pull the door up evenly from both sides, which gets rid of the jerky, wobbly movement you often see with older extension spring systems. That uneven movement puts a lot of unnecessary stress on the door panels, tracks, and rollers.
For a clearer picture, here’s a quick breakdown of how the two spring types compare.
Torsion Springs vs Extension Springs at a Glance
| Feature | Torsion Springs | Extension Springs |
|---|---|---|
| Location | Mounted on a bar above the door | Run alongside the horizontal tracks |
| Safety | High. Spring stays on the bar when it breaks. | Lower. Can fly off when breaking if no safety cable. |
| Operation | Smooth, balanced, and quiet. | Can be jerky and noisy. |
| Lifespan | Typically 10,000 to 15,000 cycles. | Shorter lifespan, often under 10,000 cycles. |
| Cost | Higher initial cost. | Lower initial cost. |
| Balance | Excellent, reduces wear on opener. | Prone to imbalance, straining the opener. |
Ultimately, this comparison tells the whole story.
The balanced lift from a torsion system not only leads to quieter and more reliable operation but also helps your entire garage door system last longer. By keeping the door perfectly balanced as it moves, it reduces the strain on your electric opener, helping its motor work more efficiently and extending its life.
While extension springs were common on older garage doors, the superior safety, controlled motion, and longer lifespan of torsion springs have made them the undisputed standard for all new installations and replacements today.
Recognizing a Failing Torsion Spring
A healthy torsion spring is what keeps your garage door running smoothly and safely day in and day out. But nothing lasts forever, and this hard-working part will eventually wear down. Knowing the signs of a failing spring helps you get ahead of the problem before it becomes a dangerous, door-stopping emergency.
The clues can be subtle at first, but they get harder to miss as the spring weakens. All you need to do is pay attention to how your door looks, sounds, and feels when it operates. Ignoring these symptoms isn't just a risk to your opener—it's a serious safety hazard.
Common Warning Signs to Look For
If you notice any of these issues, it's a clear signal that your torsion spring needs immediate professional attention. These aren’t just little quirks; they're red flags that your garage door system is under dangerous strain.
- A Loud "Bang" From the Garage: This is the most dramatic and unmistakable sign. When a spring finally breaks, the coils snap with so much force it sounds like a gunshot in the garage.
- The Door Feels Extremely Heavy: Try this: disconnect the opener and try to lift the door by hand. It should feel manageable. If it’s incredibly heavy and you can barely budge it, the spring is no longer doing its job.
- The Door Opens Crooked or Jerkily: A weak or broken spring often causes the door to lift unevenly, with one side struggling. You might also notice it shuddering its way up the tracks instead of gliding smoothly.
- A Visible Gap in the Spring: Take a look at the spring above your door. A healthy one is a single, continuous coil. If you see a clear 2-3 inch gap somewhere in the coil, that’s where it has snapped in two.
The biggest danger here is a door in free-fall. Without the spring to hold things in check, the door’s entire weight is suddenly hanging from the opener and cables—parts that were never meant to handle that kind of load. The door could crash down at any moment.
The Dangers of Ignoring the Problem
Putting off a spring repair is a gamble you don't want to take. When the spring isn't carrying the load, the full weight of your door—often more than 300 pounds—is transferred directly to your electric garage door opener. The motor in your opener was designed to guide a balanced door, not deadlift its full weight.
This huge strain will burn out the opener’s motor in no time. Suddenly, what should have been a simple spring replacement becomes a much more expensive full opener replacement. If you want to learn more, our guide explains how to tell if a garage door spring is broken.
Acting on the first sign of trouble protects your opener, your wallet, and most importantly, your family.
How Long Do Torsion Springs Really Last?
It’s easy to feel like you got a bad deal when your garage door spring snaps after just a few years. But here’s the thing: torsion springs aren't meant to last forever. Much like the tires on your car, they have a set service life.
A torsion spring's lifespan isn't measured in years, but in cycles. One cycle is simply your garage door going up and then coming back down.
Most standard springs on a new garage door are rated for 10,000 cycles. If your family uses the garage door, say, four times a day, those cycles add up quickly. At that rate, you're looking at a lifespan of roughly 7 to 10 years. So, if your spring breaks after eight years of service, it didn't fail prematurely—it just reached the end of its working life.
What Affects a Spring's Lifespan?
While 10,000 cycles is a solid industry benchmark, a few key factors can make that number go up or down.
- Frequency of Use: This one's simple. The more you use your door, the faster you'll burn through those cycles. A busy household will likely need a spring replacement sooner than someone who rarely uses their garage.
- Quality of the Spring: They're not all made the same. You can opt for higher-quality, heavy-duty springs rated for 20,000 cycles or even more. They cost a bit more upfront but can double the time between replacements.
- Climate Conditions: This is a big one for us here in Northeast Ohio. Our humidity is tough on steel springs. Moisture can cause rust and corrosion on the coils, which creates friction and weakens the spring until it breaks.
A typical torsion spring is engineered to last for 10,000 to 15,000 cycles, which works out to about 9 to 10 years of use for most households. Knowing this helps you plan for maintenance instead of being caught by surprise. You can discover more about these engineering marvels and garage door statistics on GarageDesignSource.com.
When you start thinking about your spring's life in terms of cycles instead of years, it changes your perspective. A broken spring stops feeling like an unexpected crisis and becomes a predictable part of home maintenance.
Why Torsion Spring Replacement Is Not a DIY Job
Let me be perfectly clear about this, because it's the most important safety warning in this guide. I know it’s tempting to save money on home repairs, but replacing a garage door torsion spring is one job you should never try to do yourself. This isn't a sales pitch; it's a genuine warning to keep you and your family safe.
Think of a fully wound torsion spring like a loaded mousetrap, but with enough force to lift hundreds of pounds. If that tension is released the wrong way, the spring—or the heavy steel bars used to wind it—can fly through the air with explosive power. The risks are incredibly high and just not worth the gamble.
The Dangers of a DIY Repair
Doing this repair without the right training and specialized tools is a recipe for disaster. We professionals see the aftermath of DIY jobs gone wrong, and the results can be life-altering.
- Severe Injury: If a winding bar slips out of your hand or the spring snaps, it can cause deep cuts, broken bones, or worse. There's a reason garage doors are responsible for thousands of injuries every year.
- Property Damage: That uncontrolled force can send a steel bar flying through your drywall, shatter a car windshield, or destroy the garage door itself. Your attempt to save money can turn into a much bigger, more expensive problem.
- Incorrect Installation: It's not just about getting hurt. Choosing the wrong spring or failing to balance the door properly will make your opener work too hard, burning out the motor in just a few weeks.
Hiring a professional for garage door torsion springs repair is a non-negotiable safety measure. The potential for injury is simply too high for anyone who hasn't been specifically trained to handle these powerful components.
A professional replacement typically costs between $150 and $350. When you weigh that against a trip to the hospital or major property damage, it's a small price to pay for peace of mind. Watching videos on overhead door spring replacement safety training makes it clear why these skills are reserved for experienced technicians.
Common Torsion Spring Questions
You've got the basics down, but you probably still have a few questions. That’s perfectly normal. Here are some quick, straightforward answers to what we hear most often from homeowners.
How Do I Know What Size Torsion Spring I Need?
Honestly, figuring out the right spring size is a job best left to a pro. It’s way more complicated than just grabbing one that looks about right.
A technician needs the precise weight and height of your garage door, plus the specific size of the cable drums it uses. Using the wrong size spring, even if it seems close, can destroy your garage door opener or make the door dangerously unbalanced.
To get it right, a professional will measure three critical things:
- Wire Size: The thickness of the spring's wire.
- Inside Diameter: How wide the coil is on the inside.
- Overall Length: The length of the spring when it’s fully unwound.
Getting these measurements right is the only way to calculate the correct lift, a value called IPPT (Inch Pounds Per Turn). This ensures the spring can perfectly counterbalance your specific door.
Should I Replace Both Springs at the Same Time?
Yes. Always. If you have a two-spring system and one breaks, the other one is living on borrowed time. Think about it—they were installed together and have done the exact same amount of work for years. They have the same mileage.
Replacing just the broken one might seem like you're saving money, but it’s a false economy. The old spring will be weaker, forcing the door to lift unevenly. This puts a ton of extra stress on the new spring, causing it to wear out much faster. It's smarter and cheaper in the long run to replace them as a pair and avoid a second service call a few months down the road.
Can a Torsion Spring Be Repaired?
In a word: no. Once that thick steel coil has snapped, it’s finished. There’s no repairing it. Attempting to weld it or piece it back together is incredibly dangerous and won't work. The repaired spot could never handle the immense force needed to lift a heavy door.
The only safe and effective solution is a complete replacement with a new, correctly sized spring.
Remember, the average cost to replace garage door torsion springs is typically between $200 and $290. That price usually includes the new springs and the professional labor to get them installed safely. It's a small investment for the peace of mind that comes with knowing the job was done right.
Proper maintenance and knowing when to call in a professional are the keys to a safe and reliable garage door. If anything else comes to mind, don't hesitate to ask a local expert you trust.
