R-value is simply how well a garage door panel resists heat flow—think of it as your door’s thermal shield. The higher the number, the better it keeps warm air in during winter and hot air out in summer.
Here’s a quick look at common R-values:
- Single-skin steel panels start at around R-6.
- Polystyrene cores usually range from R-8 to R-12.
- Premium polyurethane cores can reach R-16 to R-18.
Typical R-Value Ranges by Door Type and Thickness
Below is a quick reference table showing popular insulation materials, their thickness, and typical R-value ranges.
| Material Type | Thickness | R-Value Range |
|---|---|---|
| Single-Skin Steel | 1 3/8″ | R-6 |
| Polystyrene Panel | 1 3/8″–2″ | R-8 to R-12 |
| Polyurethane Panel | 2″–3″ | R-16 to R-18 |
In Northeast Ohio, upgrading from an R-6 to an R-12 panel can trim about 10% off your heating bill—though savings vary with garage use and how well seals hold.
How to Choose Your R-Value
Start by thinking about how you use your garage and local temperature swings. If it doubles as a workshop or stores heat-sensitive items, stepping up to R-12 or higher brings extra stability.
For attached garages, higher R-value panels limit heat transfer into your home, cutting your overall HVAC load. Balance cost, comfort, and energy savings now for bigger payoffs later—especially when you call Danny’s Garage Door Repair for an upgrade.
Understanding Key R-Value Concepts
Think of R-value like putting on a cozy winter coat. Each panel adds a layer of protection against the cold, slowing heat transfer.
Manufacturers test panels in spotless lab conditions—perfect temperatures and sealed edges. But once installed, seams, framing, and fasteners create escape routes for heat. You’ll almost always see a drop from sticker value to real-world performance.
- Lab Measurement: Sealed edges and steady temperature differences.
- Field Performance: Lowered by air leaks, thermal bridging, and uneven installation.
- True Thermal Resistance: Combines insulation quality and installation quality.
Lab Versus Real Performance
A panel rated R-18 can slip to around R-14 once it’s mounted with typical hardware. Heat finds new pathways around the core, so seams, panel joints, and even layers of paint chip away at that barrier.
“A high R-value alone doesn’t guarantee peak performance—air tightness and assembly quality drive true thermal efficiency.”
Factors That Lower Real R-Value
Every garage door has weak spots. Metal components and gaps around the edges let heat bypass the insulation, while fasteners and worn seals break the barrier.
| Factor | Impact on R-Value |
|---|---|
| Thermal Bridging | Can reduce effective R by 10–20% |
| Panel Gaps | Lets air sneak in, lowering overall R |
| Fasteners & Seals | Interrupt continuous insulation |
It’s why a well-installed R-16 door with tight weatherstrips often outperforms an unsealed R-18 panel.
Applying R-Value Concepts Holistically
To maximize insulation, pair a strong core with spot-on weatherstripping and a clean threshold seal. U-factor ratings show how the entire assembly handles heat transfer.
In Northeast Ohio, sealing drafts can slash garage heat loss by 20–30%, often more than swapping panels. That’s why Danny’s Garage Door Repair inspects every seal, frame, and fastener during upgrades.
- Compare core R-values alongside seal and frame quality.
- Ask for a draft test around the door perimeter.
- Remember: a few well-placed seals can beat a big jump in R-value.
Comparing Insulation Materials and R-Values
Choosing the right garage door insulation is like picking tires for your car—you want the best fit for your climate, budget, and use.
At its core, R-value measures how well a material resists heat flow. The higher the number, the stronger the barrier against cold or heat.
Discover more about the global garage door market here.
Common Insulation Types
| Insulation Type | R-Value Range | Moisture Resistance | Sound Dampening | Thickness |
|---|---|---|---|---|
| Single-Skin Steel | R-6 | Low | Minimal | ~1⅜″ |
| Polystyrene Filled | R-8 to R-12 | Medium | Moderate | 1⅜″–2″ |
| Polyurethane Filled | R-16 to R-18 | High | Strong | 2″–3″ |
| Continuous Insulation | R-12 to R-18 | Very High | Excellent | 2″–3″ |
For a basic weather shield, an R-8 panel is an affordable step up from bare steel. But if you’re running a home gym or working through winter, an R-18 setup pays back in quieter, more consistent temps.
That graphic shows how perfect lab ratings dip to about 70% once you factor in seams and gaps—proof that tight seals matter as much as panel thickness.
Enhancing Thermal Performance
Small upgrades around the edges can boost your door’s real-world R-value more than swapping panels alone.
- Install rail seal kits to line tracks and block drafts.
- Add thermal breaks between panels and frames to cut heat bridges.
Check out our step-by-step guide on how to insulate your garage door for full sealing tips.
“Adding simple upgrades can boost real R-value more than swapping panels alone.”
In Northeast Ohio, moving from R-8 to R-18 can slash heating loss by roughly 20%. Pair that with airtight seals for smoother temps and smaller energy bills all year.
How R-Value Works with Air Sealing and U-Factor
R-value is the panel’s resistance to heat flow, but even the best-rated doors can lose performance if air sneaks through seams and edges. Proper sealing turns a leaky barrier into a continuous thermal shield.
A suite of weatherstripping, threshold seals, and track gaskets can boost insulation far beyond raw R-value. Look for:
- Vinyl or rubber weatherstrips around the perimeter for a snug border
- Threshold seals to stop cold air at the bottom edge
- Track gaskets that close off drafts along the door’s rolling path

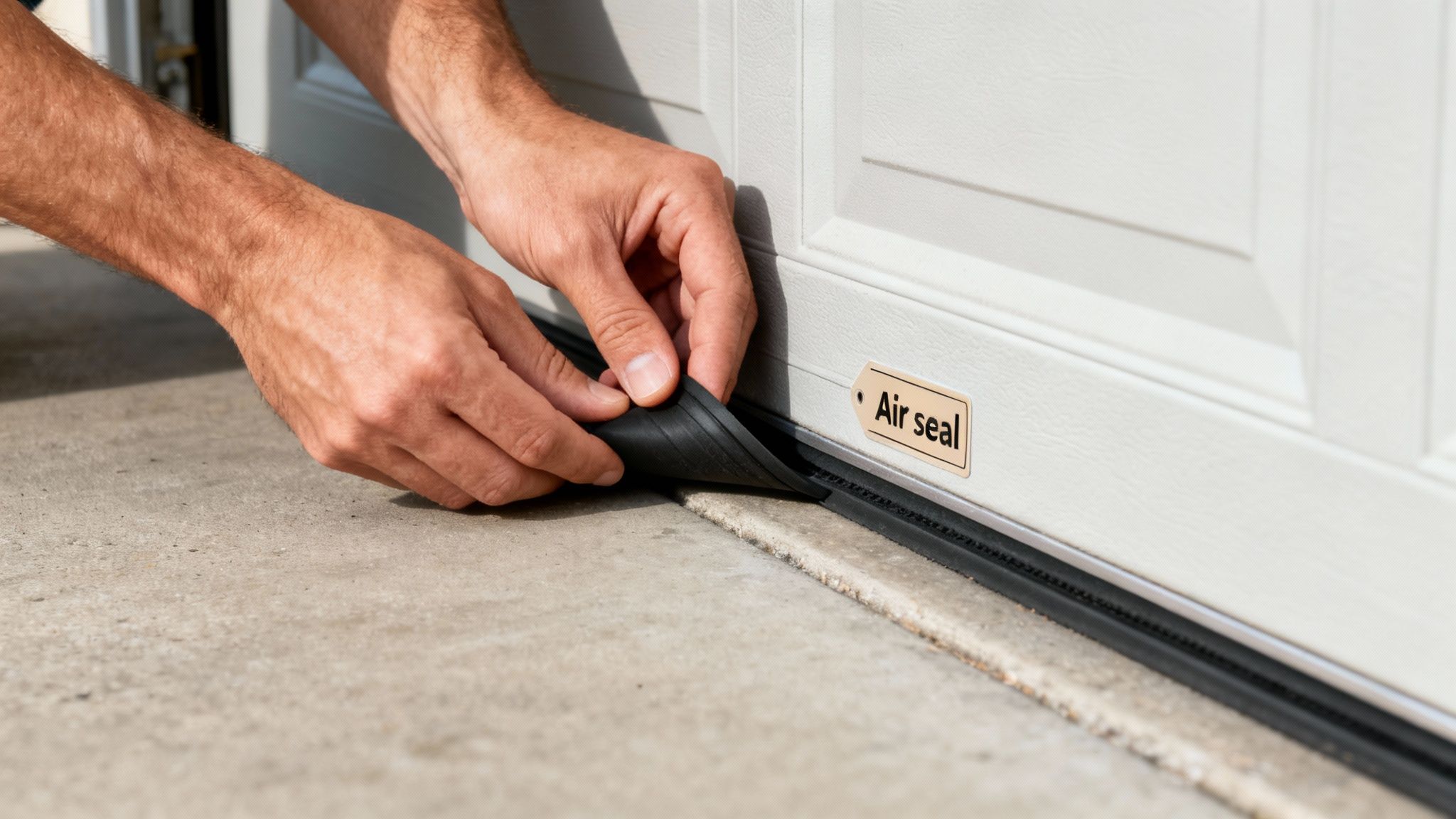

Weather Seals and Door Gaps
A solid seal is your first defense against wasted heat. Even an R-18 core can lose 20–30% of its effectiveness if gaps remain.
“Even small cracks cut effective R-value and drive up energy costs,” notes a Danny’s technician.
Inspect seals each year, swapping out brittle or compressed strips before winter. For how-to, see our walkthrough on Sealing Garage Door Gaps.
Understanding U-Factor
While R-value measures the panel alone, the U-factor looks at the door as a complete system. A lower U-factor means less heat slipping through—insulation, seals, frame materials, and hardware all count.
Key points:
- U-factor is the inverse of the assembly’s total R-value.
- It merges core, seals, frames into one metric.
- A well-sealed R-12 door often outperforms a poorly sealed R-18 panel.
| Door Type | Sealing | U-Factor |
|---|---|---|
| R-12 | Unsealed | 0.12 |
| R-12 | Sealed | 0.08 |
| R-18 | Unsealed | 0.10 |
| R-18 | Sealed | 0.06 |
Calculating Heat Loss Savings
Imagine a 200 ft² attached garage door facing a 20 °F drop. Heat loss swings dramatically with sealing:
- Unsealed R-12 door: 200 × 0.12 × 20 = 480 Btu/hr
- Sealed R-12 door: 200 × 0.08 × 20 = 320 Btu/hr
- Savings from sealing: 160 Btu/hr
Sealing can deliver up to 30% more heat retention than upgrading from R-12 to R-18. Danny’s technicians always inspect seals first—often you’ll get bigger comfort and efficiency gains at a fraction of the cost.
Ready to lock in those savings? Call Danny’s Garage Door Repair now for a full seal inspection and U-factor assessment. We’ll keep your garage cozy and your energy bills in check.
Benefits of High R-Value Doors in Cold Climates
When Northeast Ohio temps plunge below 0 °F, every layer counts. Swapping an older door for R-16 or R-18 can cut heat loss by up to 30%.
In Lake County, homeowners report 10–15% lower utility bills month to month. One workshop owner even stayed warm during –20 °F snaps.
It’s like wearing a winter parka that never comes off—snowstorms feel miles away.
Energy Savings Over Winter
A 200 ft² garage door with a 40 °F indoor-outdoor gap loses around 600 Btu/hr without insulation:
- Sealed R-16 door drops loss to 320 Btu/hr (45% savings)
- R-18 option shrinks that to 240 Btu/hr (60% savings)
Your furnace cycles less often, directly cutting gas or electric costs.
“Upgrading our door cut our shop’s energy load in half,” says a Danny’s Garage Door Repair customer.
Comfort and Noise Reduction
High R-value doors also dampen noise. A polyurethane core softens slams and blocks wind howl, turning a garage gym or mudroom into a calmer space.
- Temperatures stay within 5°F swings year-round.
- Noise levels drop by up to 50% during storms.
- Frost and condensation nearly disappear on panels.
A Beachwood homeowner noted a 50% drop in door noise during morning snowfalls, while the living room stayed peaceful.
Comparing Costs Versus Savings
Choosing R-18 panels adds about $200 more than basic models, but rebates and tax credits can cover 20–25%.
| Metric | R-16 Door | R-18 Door |
|---|---|---|
| Upfront Premium | $150 | $200 |
| Annual Energy Savings | $80 | $100 |
| Payback Period (yrs) | 1.9 | 2.0 |
You’ll typically break even in under three years.
When to Call Danny’s Garage Door Repair
If you’re asking, “What Is R-Value for Garage Doors?”, we’ve got you covered. Our team will:
- Inspect seals and spot drafts
- Outline R-value options in your estimate
- Schedule installation before winter’s chill
That way, you know exactly what to expect and when.
Real-World Impact
Cleveland can swing 50 °F in a single day. Yet homes with R-18 doors see up to 20% fewer furnace cycles weekly.
- DIY insulated doors offer modest gains.
- Professionally installed R-18 panels eliminate drafts.
Proper upgrades can save you $150 on heating each winter.
Ready to lock in warmth and quiet? Danny’s Garage Door Repair offers free estimates and brisk installations. Book your consultation today.
Calculating Costs and Savings on Insulated Doors
Upgrading from an R-6 garage door to R-12 or R-18 isn’t just swapping panels—it’s an investment that pays off in lower energy bills.
On average:
- R-12 panels cost about $150 more than basic steel.
- Moving to R-18 adds around $200 extra.
- DIY insulation kits range from $50–$100 per door.
Factor in local energy rates—say $0.10 per kWh or $0.90 per therm—and you can sketch a payback timeline.
Cost Premiums and Payback Periods
- Calculate Annual Energy Savings: Multiply your annual kWh or therm reduction by your rate.
- Compute Payback Period: Divide the upgrade premium by those annual savings.
- Factor In Rebates and Tax Credits: Subtract incentives to shrink payback time.
“A well-insulated R-18 door can pay for itself in under three years in cold climates.”
A $200 bump on an R-18 door often returns about $100 each year. Add a 15% rebate, and you’ll break even even sooner.
Spreadsheet Outline and Installer Questions
Keeping quotes in a spreadsheet makes comparison simple. Include:
- Door model and R-value
- Upfront cost and labor
- Estimated energy savings
- Rebate and credit amounts
- Net premium and payback period
Before you sign any estimate, ask installers:
- What labor rate applies?
- Which rebates or credits do you handle?
- How is your door’s U-factor measured and documented?
When to Call a Professional
DIY insulation saves money, but an expert prevents missed gaps and errors. Call Danny’s Garage Door Repair when:
- You want a full draft and seal inspection.
- Your door frame shows cracks or uneven gaps.
- You need an exact U-factor measurement.
Learn more in our Garage Door Energy Efficiency guide at Garage Door Energy Efficiency.
With these numbers and questions, you’ll know whether an R-12 or R-18 upgrade fits your budget and comfort goals.
Final Tips for Accurate Estimates
Always include installation labor and local energy rates.
- Get at least three written quotes with line-item details.
- Confirm installers use calibrated tools for draft tests.
- Ask about seasonal promotions or bulk-purchase discounts.
Consider bundling a garage door opener upgrade for better package pricing.
Pro Tip: Compare local rebates and tax credits before you sign.
Book your estimate today with Danny’s Garage Door Repair.
Frequently Asked Questions
Homeowners often wonder what R-value means for garage doors and how to pick the right rating for an attached garage. R-value measures a door’s resistance to heat flow, directly influencing comfort in nearby living spaces.
What R-Value Do I Need for an Attached Garage?
For garages attached to heated or cooled rooms, aim for at least R-12 to keep temperatures steady. In Northeast Ohio’s harsh winters and humid summers, upgrading to R-16 can ease your HVAC’s workload.
How Do I Know if My Door’s Insulation Is Failing?
Watch for cold drafts around edges or uneven temperatures on the door’s surface. Frost or condensation inside is another warning. Key signs:
- Gaps or cracks in seals letting in cold air
- Frost lining panels on winter mornings
- Noticeable temperature swings near the door
Can I Install Insulation Myself?
DIY kits for polystyrene or reflective insulation come with pre-cut panels and simple instructions. But achieving a truly airtight seal around seams and tracks often needs professional weatherstripping tools. If you’re handy with spray foam and adhesive-backed panels, DIY can save money. A pro ensures every gap is sealed and your U-factor performance is verified.
Extra Energy Upgrades
Insulation is just the first step. These hardware tweaks add more savings:
- High-Quality Bottom Threshold Seals to block drafts at the floor
- Track Gaskets around rollers for a tighter closure
- Thermal Break Kits to interrupt conductive heat bridges
- Insulated Garage Door Openers to limit ceiling heat loss
Combining sealing with hardware upgrades can cut heat loss by 30% more than panels alone.
Ready for an expert R-value assessment and sealing audit? The skilled technicians at Danny’s Garage Door Repair offer free inspections, clear quotes, and fast installations. Keep your garage comfortable and energy-efficient all year—book your free insulation audit today.
