Winding a garage door spring means tightening it to build up the tension needed to lift the massive weight of your door. Let's be crystal clear: this is an extremely hazardous job for a DIYer. It demands specific tools and a serious respect for the incredible amount of energy you're about to unleash. If you get this wrong, that force can be released uncontrollably, causing devastating injuries.
Understanding the Real Dangers of Torsion Springs
Before you even touch a tool, we need to have a serious talk about what you're up against. Winding a torsion spring isn't like fixing a running toilet or putting together a bookshelf. Frankly, it’s one of the most dangerous projects you can attempt around the house. I'm not trying to scare you off—I just want you to be safe by fully respecting the risks.
The torsion spring system is pure muscle. It stores an immense amount of mechanical energy, coiled tight and ready to lift a door that weighs hundreds of pounds. The best way to think about it is like a giant, super-powered mousetrap. When that energy is released in a controlled way, everything works smoothly. If it lets go unexpectedly, the results are violent and often catastrophic.
The Physics of the Force
A properly tensioned torsion spring can launch a solid steel winding bar across your garage with terrifying speed. If that bar hits you, a family member, or your vehicle, the damage will be severe. The danger comes from two places: the spring itself snapping or the tools slipping out during the adjustment.
And this isn't just a theoretical possibility. Garage door injuries are a well-documented hazard. The Consumer Product Safety Commission has tracked over 20,000 emergency room visits annually related to garage doors. Springs are a primary culprit in roughly 85% of the most serious injuries, which often involve deep lacerations and broken bones.
The single biggest mistake I see is people underestimating the stored energy. A fully wound spring for a standard two-car garage can easily lift over 300 pounds. Losing your grip on that power, even for a split second, is how accidents happen.
Real-World Scenarios to Consider
When things go wrong with torsion springs, they go wrong in a flash. Here are a few all-too-common examples of what can happen when a DIY attempt goes south:
- Using the Wrong Tools: A homeowner grabs a screwdriver or a piece of rebar instead of proper winding bars. The makeshift tool inevitably slips out of the winding cone, becoming a projectile that shatters a car window.
- A Moment of Distraction: Someone gets distracted for a second and pulls a winding bar out before the set screws are fully tightened. The spring instantly and violently unwinds with a deafening bang, throwing the bar across the garage and narrowly missing their head.
- Overlooking Other Worn Parts: The spring gets wound perfectly, but a frayed lift cable can't handle the new tension. It snaps, and the full weight of the door comes crashing down.
These aren't tall tales; they are the unfortunate reality when safety procedures are ignored. As professionals, we treat this job with extreme caution because we've seen the aftermath firsthand. Truly understanding these risks is the most critical step in this entire process. If you’re feeling at all hesitant after reading this, our guide on torsion spring repair offers more context on when calling a pro is the smartest move.
Gearing Up: Your Essential Tools and Safety Equipment
Let’s be blunt: attempting to wind a garage door spring without the right gear isn't just a bad idea—it's a recipe for disaster. Before you even lay a hand on that spring, you need to gather a very specific toolkit. This is one job where "good enough" won't cut it. The right tools are your first and most important line of defense against serious injury.
The most critical item on your list? Proper steel winding bars. I can't stress this enough. These aren't just any old metal rods; they are purpose-built to fit perfectly into the winding cone sockets on your torsion spring. I’ve heard too many horror stories about people using screwdrivers, tire irons, or pieces of rebar. They don't fit securely, and under immense tension, they will slip, turning into high-speed projectiles.
Make sure your winding bars match the hole diameter on your spring's winding cone. Most are either 1/2 inch or 5/8 inch. A snug, perfect fit is the only way to maintain absolute control while you're turning that spring.
Your Must-Have Safety and Tool Checklist
Think of this list as your pre-flight check. Don't even think about starting the job until every single one of these items is laid out and ready to go. Having everything within arm's reach prevents you from making a risky move in the middle of the process.
| Tool/Equipment | Specification | Critical Safety Note |
|---|---|---|
| Steel Winding Bars | Must match cone hole diameter (1/2" or 5/8") | Non-negotiable. Using substitutes is the #1 cause of DIY injuries. |
| Sturdy Ladder | A-frame or stable step ladder | Never overreach. Keep your center of gravity stable. |
| C-Clamps or Vise-Grips | At least one, two is better | Prevents the door from flying open under new spring tension. |
| Wrenches/Socket Set | Correct size for set screws (often 7/16” or 1/2”) | A stripped set screw is a major headache you don't need. |
| Safety Glasses | ANSI Z87.1 rated | Protects your eyes from metal shards if a spring or tool fails. |
| Thick Work Gloves | Cut-resistant material recommended | Protects from sharp edges and improves your grip on the bars. |
| Measuring Tape | Standard retractable tape | Essential for verifying spring dimensions. |
| Marker or Chalk | Any visible color | Used to mark the spring so you can accurately count your turns. |
Having the right gear is about more than just convenience; it's about creating a controlled, safe workspace where you can focus entirely on the high-tension task at hand. Check out this complete guide to cut-resistant gloves to understand why proper hand protection is so vital.
The Pre-Winding Safety Inspection
With your tools ready, it's time to secure the area. This isn't just tidying up; it's a critical inspection to ensure the entire system is stable before you start loading it with incredible force.
First things first: close the garage door completely and lock it down. Grab a C-clamp and fasten it tightly to the vertical track, just above one of the bottom rollers. This simple act is a failsafe that physically stops the door from shooting up if something goes wrong.
Next, kill the power to the garage door opener. Unplug it directly from the outlet. You absolutely cannot risk someone hitting the wall button or remote while you're working on those springs. If the opener is hardwired into your home's electrical system, find the right breaker in your panel and switch it off.
Finally, do a quick visual check of the cables and drums. Look for any signs of fraying, rust, or kinking in the cables. Inspect the drums at each end of the torsion tube for cracks or damage. If you spot anything that looks weak or broken, stop immediately. Adding tension to a system with a compromised part is asking for a catastrophic failure.
Industry safety statistics are sobering. Torsion springs are involved in 85% of the roughly 20,000 annual U.S. ER visits for garage door accidents, with a huge portion stemming from DIY winding attempts. Being off by just one full turn can add an extra 30-50 lbs of force, risking an explosive failure. You can discover more insights about garage door spring safety statistics on researchandmarkets.com.
Proper prep is what separates a successful repair from a trip to the emergency room. If you’re feeling at all hesitant about the finer points of tensioning, our guide on how to adjust garage door tension offers more background that might help. Take these steps seriously—they're what keep you safe.
Winding the Spring: A Step-by-Step Guide
Alright, this is where the rubber meets the road. Winding a garage door spring is a job that demands your full attention. It’s all about controlled, deliberate movements. Every quarter-turn you make loads a tremendous amount of energy into that steel coil, so rushing is absolutely off the table. Let's walk through the exact process I use, focusing on the techniques that keep you safe and the door balanced perfectly.

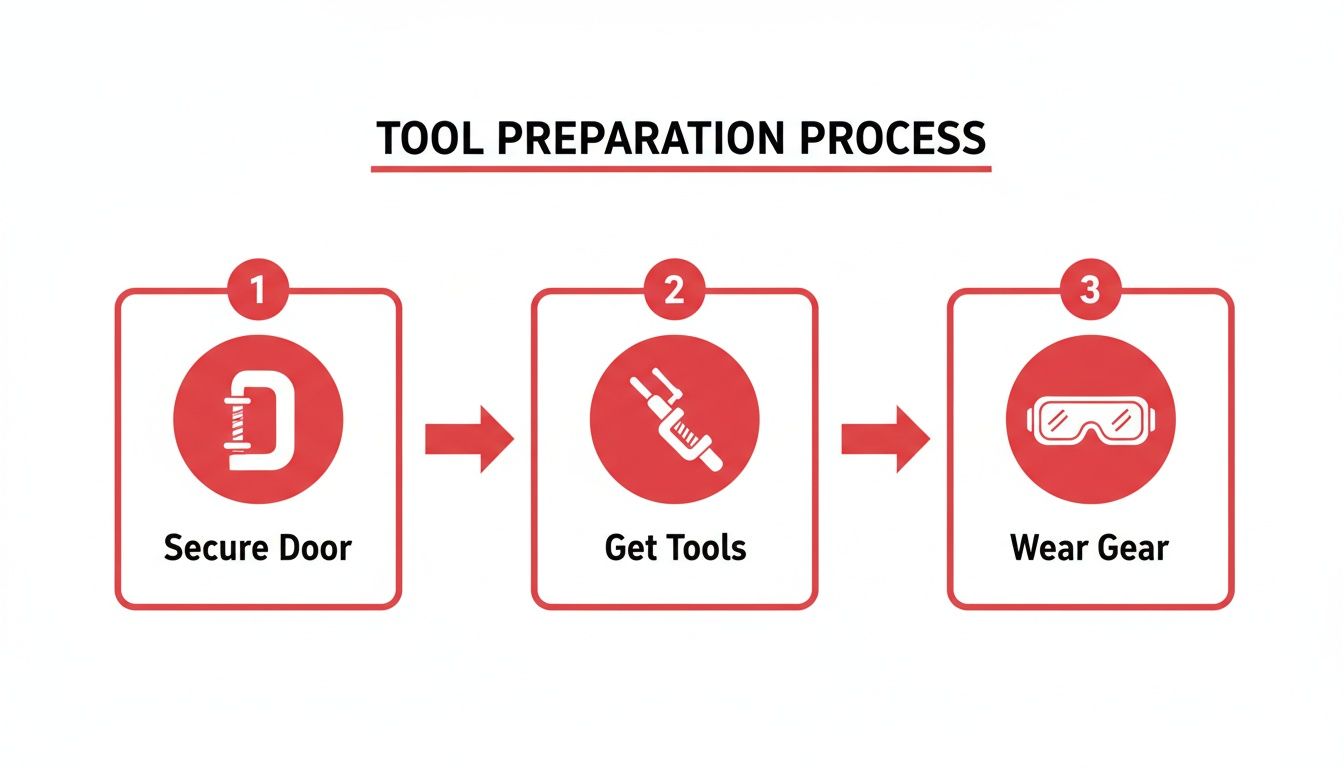

Before you even think about touching the spring, get your setup right. This isn't optional.
As this shows, the door must be secured, you need the right tools within arm's reach, and your safety gear has to be on. These aren't just suggestions; they're the bedrock of doing this job safely.
Know Your Wind Direction: Red vs. Black Cones
First things first, you have to know which way to turn the bars. This is a common point of confusion for beginners. Garage door springs are directional—they're literally "left-wind" or "right-wind"—and putting them on the wrong side or winding them the wrong way means the door simply won't work.
Luckily, the industry has a simple color code:
- Red Winding Cone: This is a right-wind spring. It always gets installed on the left side of the door (as you face it from inside the garage).
- Black Winding Cone: This is a left-wind spring. It’s always installed on the right side of the door.
Here’s the easy way to remember it: from your position inside the garage, both springs get wound upwards, toward the ceiling. Simple as that. Following this rule prevents dangerous mistakes before they happen.
The "Leapfrog" Winding Technique
With your safety glasses on and a firm stance, it’s time to start adding tension. Push one of your winding bars all the way into one of the bottom holes of the winding cone. You need to feel it seat firmly; no halfway measures here.
Now, rotate that bar upwards a quarter-turn (90 degrees). You’ll feel the spring immediately fight back. Hold it steady—that’s the force you now control.
While keeping a death grip on that first bar, take your second winding bar and insert it fully into the next hole that just appeared below the first bar. Now you have two solid points of control. This is what we call the "leapfrogging" method, and it is the only safe way to wind a spring.
You'll repeat this motion: rotate the top bar up another quarter-turn, then insert the bottom bar into the hole that's now clear. Always move in these small, manageable quarter-turns. And the golden rule? Never, ever let go of a bar that’s holding tension.
The whole point of leapfrogging is constant control. If your hand were to slip, the second bar is already locked in place to catch the spring's immense torque. It’s your built-in safety net, preventing the bar from becoming a projectile.
How Many Turns? Getting the Balance Right
So, how tight do you wind it? The answer isn't a guess; it's based on your door's height. The professional standard is one full 360-degree rotation for every foot of door height. Since you're working in quarter-turns, that means four "clicks" equal one full turn.
- A standard 7-foot tall door needs 7 full turns (that’s 28 quarter-turns).
- A taller 8-foot tall door needs 8 full turns (32 quarter-turns).
Keeping track can be tricky. Before you start, grab a piece of chalk or a marker and draw a line down the length of the spring. Every time that line makes a full circle and comes back to the top, you've completed one turn. I usually add an extra quarter-turn at the end to make sure the door seals tightly to the floor when it's closed.
Getting this count right is critical. For instance, a common 16×7-foot door can weigh 200 lbs or more. The springs are engineered to handle that load for thousands of cycles, but only when wound correctly between 7 and 8 full turns. Under- or over-winding can slash a spring's lifespan by up to 50%, guaranteeing you'll be doing this again way too soon. The engineering behind these springs is surprisingly precise, as detailed in various industry reports on torsion spring specifications.
Locking It Down: The Set Screws
Once you've hit the right number of turns, the final step is to lock it all down. Hold that last winding bar firmly in place. Remember, the spring is now a fully loaded weapon, and you're the only thing holding it back.
With your free hand, grab your wrench and find the two set screws on the winding cone.
Snug up the first screw until it makes firm contact with the torsion tube, then do the same for the second one. Once they're both snug, go back and give each one a final tightening—about a half to three-quarters of a turn past snug is perfect. You want them to bite into the hollow tube to prevent any slippage, but don't crank on them so hard you strip the threads.
Only when both set screws are tight can you safely and slowly remove the winding bars. The spring is now secure, and you're ready to test your work.

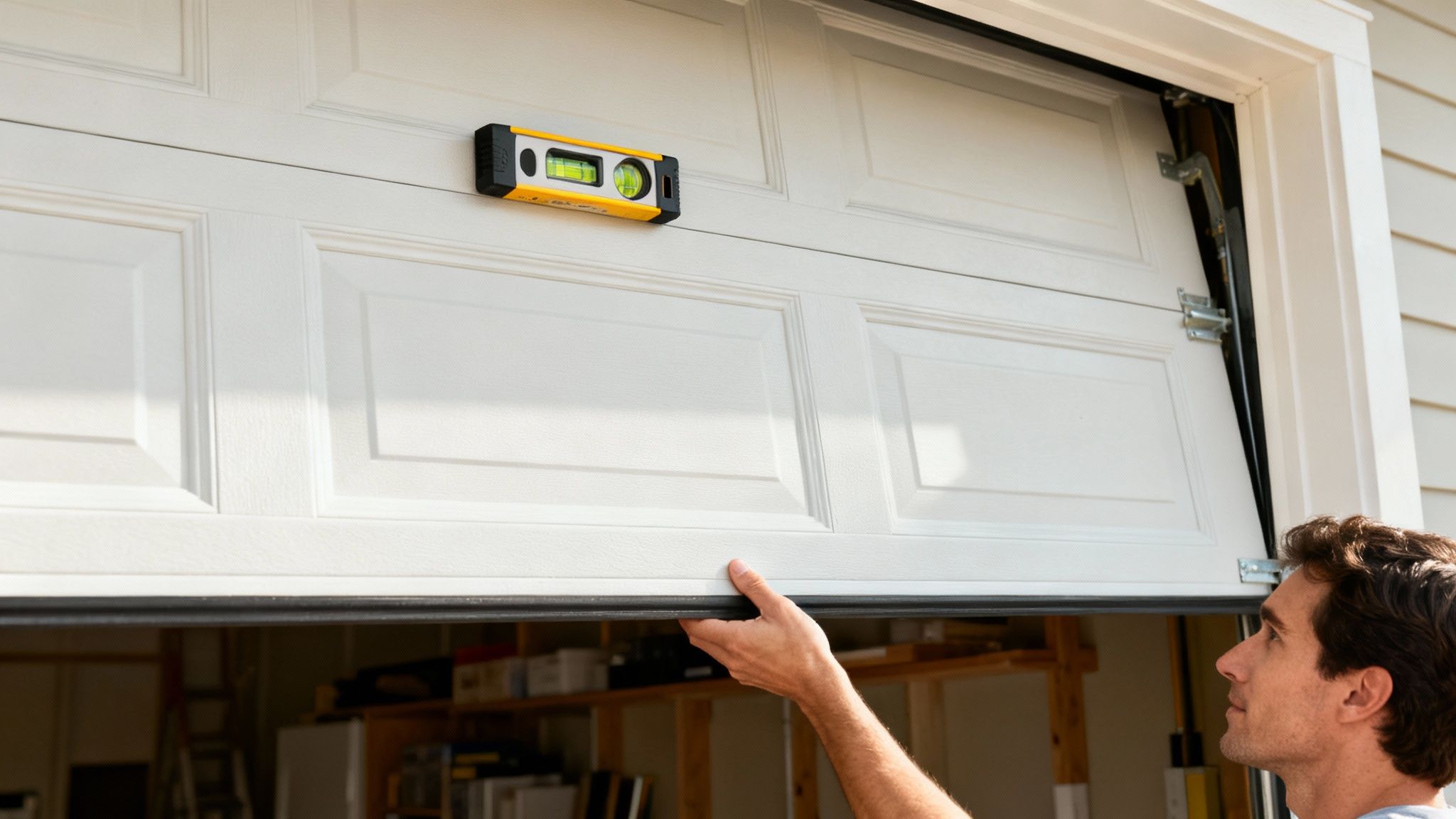

Checking Your Work: How to Test and Fine-Tune the Balance
You've done the hard part—the spring is wound and the screws are snug. But believe me, winding a garage door spring is only half the battle. Now comes the moment of truth: the balance test.
A perfectly balanced door is the hallmark of a job done right. It's what keeps your door running smoothly and, more importantly, prevents you from burning out your garage door opener motor.
Before you go any further, you can safely take that C-clamp off the track. Then, re-engage your garage door opener by pulling the emergency release cord. Let's see how well you did.
The Mid-Point Balance Test
Alright, here we go. Grab the handle and lift the door by hand. If you've got the tension right, it should feel surprisingly light. Hoist it up until the bottom edge is about three or four feet off the ground—right around your waist—and then carefully let it go.
Pay close attention. The door will do one of three things, and its reaction tells you everything you need to know.
- The Door Stays Put: Does it hover in place, maybe settling an inch or two? Perfect. You’ve nailed the balance.
- The Door Slams Down: If it drops right away, especially if it gains speed, the spring is under-wound. It just doesn't have enough muscle to hold the door's weight.
- The Door Drifts Up: If the door keeps rising on its own, it’s what we call "hot," or over-wound. You've got a bit too much tension loaded up.
Don't be discouraged if it's not perfect on the first try. Honestly, it rarely is. Fine-tuning is just part of the process.
A properly balanced garage door should feel almost weightless in the middle of its travel. This equilibrium is what allows your opener to simply guide the door along the tracks, rather than straining to lift hundreds of pounds of dead weight. An imbalanced door is the number one cause of premature opener failure.
Making Small, Precise Adjustments
If your door is off-balance, it's time for a few tweaks. The secret here is to work in small, controlled increments. And remember, every single time you touch that spring, you need to reset your safety precautions: unplug the opener and clamp the door to the track. No exceptions.
If the door falls (under-wound): You need to add just a little more tension. Using the same safe leapfrogging method with your winding bars, tighten the spring by just one quarter-turn. Lock down the set screws, then run the balance test again.
If the door rises (over-wound): This means you need to release a bit of tension. This is just as dangerous as winding, so stay focused. Insert both winding bars, and carefully loosen the set screws just enough for the bars to take the full force. In a very controlled motion, back the spring off by one quarter-turn. Tighten everything back up and re-test.
Keep repeating this process, adding or subtracting tension a quarter-turn at a time, until that door hangs perfectly still in the middle of the opening. It might take a few attempts, but patience is the key.
For a deeper dive into the principles of this process, our guide on how to balance a garage door provides even more detailed insights.
Getting this final step right makes all the difference. It's what turns a heavy, clunky slab into a smooth, effortless machine and ensures your hard work will last for years.
Knowing When to Call a Pro: Your Safety Net
Even the most capable DIYer needs to know when to draw the line. And when it comes to winding a garage door spring, that line is bright, bold, and absolutely critical. Pushing past your limits on this job isn't a matter of pride; it's a gamble with your personal safety. Recognizing the signs that say "stop" is the smartest tool you have in your belt.
This isn't about admitting defeat. It's about knowing that a professional service call is a small price to pay for your well-being and preventing a much bigger, more expensive problem. Sometimes, what looks like a simple snag is actually a red flag for a serious failure just waiting to happen.
Red Flags That Mean "Stop Immediately"
If you spot any of these issues during your pre-check or while you're working, put the tools down. These aren't minor setbacks—they're serious hazards that demand an expert's attention.
- Frayed or Damaged Cables: The lift cables are the springs' partners in doing the heavy lifting. If you see even a single broken strand, rust, or a kink, stop. Winding a new spring will put immense tension on that weakened cable, and if it snaps, the door will come crashing down.
- A Bent or Damaged Torsion Tube: That hollow tube the springs are mounted on has to be perfectly straight to work correctly. If it’s bent, the springs will grind and bind, which can lead to a sudden, violent failure.
- Cracked or Warped Drums: Take a close look at the drums on each end of the tube where the cables wind up. Any sign of cracking or warping means they are compromised and cannot be trusted to support the door's full weight.
- You Lose Control for Even a Second: This is a big one. If a winding bar slips out of the cone, even just for a split second, that's your warning. If you feel the spring's force overpowering you at any point, that’s your cue to back away. That near-miss could be a catastrophic hit next time.
The second you feel out of your depth, it’s time to call in a professional. There’s zero shame in making the smart, safe choice. A finished DIY project is never worth a trip to the emergency room.
When the Door Simply Won’t Balance
Sometimes the problem is less obvious. You might follow all the steps, wind the springs exactly as calculated, and run the balance test only to find the door is still incredibly heavy or wants to fly open on its own (we call that "hot"). You try adjusting it, adding a quarter-turn, then taking one-off, but it's just not right.
If you’ve made a few attempts and the door still won't cooperate, it's time to stop. This usually points to an underlying issue. You could have the wrong size springs for your door’s actual weight, or maybe there's an unseen alignment problem in the tracks causing resistance. At this stage, you're just guessing, and every incorrect adjustment puts more strain on the whole system.
Deciding when to tackle a job yourself versus calling for help can be tough. This quick guide should make it easier.
DIY vs Call a Pro Decision Guide
| Scenario | Recommended Action | Reason |
|---|---|---|
| You notice frayed lift cables or a bent torsion tube. | Call a Pro | These are critical failures. Replacing them requires specialized tools and knowledge to do safely. |
| You feel overwhelmed or lose control of a winding bar. | Call a Pro | Your safety is paramount. A professional has the experience and strength to handle the spring's torque. |
| The door won't balance after a few adjustments. | Call a Pro | This indicates a deeper problem, like mismatched springs or track issues, that needs expert diagnosis. |
| You have the correct tools and feel confident. | Proceed with DIY | If you've done your research, have the right safety gear, and all parts look good, you can proceed carefully. |
Ultimately, calling a professional is never the wrong choice if you have any doubts.
Your Go-To Experts in Cleveland
When you’ve hit a roadblock, Danny's Garage Door Repair is ready to step in. Our technicians serve the entire Cleveland area, from Pepper Pike to Brunswick, and we’ve seen—and fixed—it all. We have the proper equipment and years of hands-on experience to figure out the problem quickly and fix it right the first time.
Don't take a chance. If any of these red flags pop up, just give us a call. With our 24/7 emergency service, we can get there fast to make sure your door is secure and working safely, giving you total peace of mind.
Still Have Questions? Let's Talk Springs
Winding a garage door spring is a serious job, and even with a step-by-step guide, it's normal to have a few questions pop up. It's one of those tasks where the details really, really matter. I've heard just about every question in the book over the years, so let's clear up some of the most common ones.
Think of this as the final check-in before you get started—the kind of stuff that can save you from a major headache or a dangerous mistake.
How Many Turns on a Garage Door Spring?
This is the big one. Everyone wants to know the magic number. The standard rule of thumb in the industry is pretty straightforward: one full 360-degree rotation for every foot of door height.
So, for most homes, it looks like this:
- A 7-foot tall door gets 7 full turns.
- An 8-foot tall door gets 8 full turns.
Keep in mind that one "full turn" means you'll be rotating your winding bars four quarter-turns. While this formula is a fantastic starting point and gets you 95% of the way there, the true test is how the door balances. You might find you need to add or subtract a quarter-turn to get it just right.
Can I Get By With Just One Winding Bar?
No. Absolutely, unequivocally not. Trying to wind a spring with a single bar is one of the most dangerous shortcuts you can take. The whole safety of this process relies on "leapfrogging" the two bars, which ensures you never, for a single second, lose control of the spring's immense tension.
If you use only one bar, you have to pull it out to reposition it. In that split second, the spring can unleash all its stored energy at once, turning that steel bar into a projectile. It’s a recipe for disaster. Always use two bars. No exceptions.
What's the Deal with the Red and Black Cones?
Those colors aren't for decoration. They're a critical code telling you the spring's wind direction, and mixing them up is a classic DIY mistake.
- A red cone is for a right-wind spring. It always goes on the left side of the door (looking out from inside your garage).
- A black cone is for a left-wind spring. It's installed on the right side of the door.
An easy way I tell people to remember this is that you are always winding the spring up towards the ceiling.
I've seen it happen countless times: someone installs the springs on the wrong sides. When you do that, the door will never balance because the springs are essentially fighting each other instead of working together to lift the door.
Does the Painted Stripe on the Spring Matter?
Yes and no. That colored line running down the spring typically signifies the wire gauge. The problem is, there's no universal color code. One manufacturer's "green" might be another's "yellow." Because of this, you should never rely on matching the stripe color when buying a replacement.
To get the right spring, you need to match three specific measurements from your old one:
- Wire Size: The actual thickness of the coil wire.
- Inside Diameter: How wide the spring is on the inside.
- Length: The total length of the spring when it's fully unwound.
Grabbing a spring that just "looks right" because the color matches will almost guarantee your door won't balance correctly, and you'll burn out that new spring in no time.
Feeling like this is a bit more than you bargained for? That's completely understandable. If you’d rather leave the risks and technical details to a pro, the team at Danny's Garage Door Repair is ready to help. We handle spring repairs and replacements across the Cleveland area safely and professionally every day. You can learn more about our services at https://garagedoors101.com.
